500-2000m/Min Cnc Saw Cutting Machine 380V Aluminium Band Saw VF4550-12

Name: 500-2000m/Min Cnc Saw Cutting Machine 380V Aluminium Band Saw VF4550-12
Brand: HEINEDA
SKU: VF4550-12
Rating: 4.9 (147 reviews)

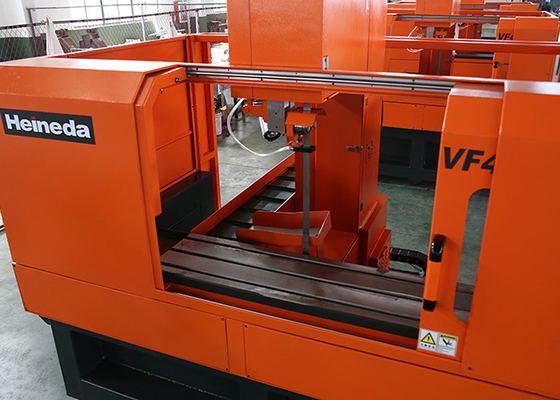

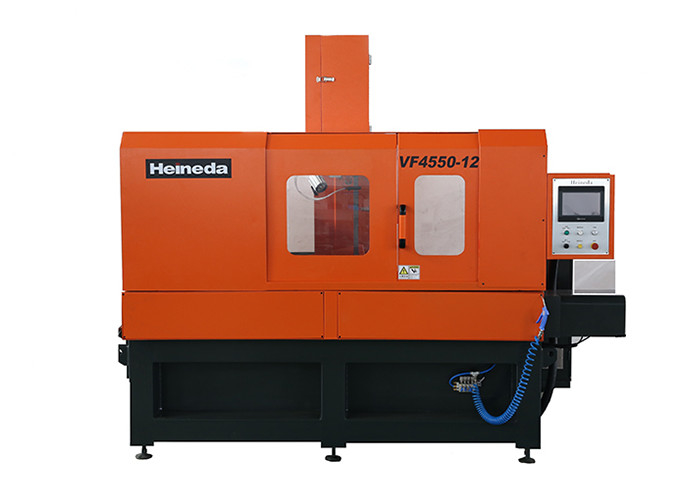

Large Image : 500-2000m/Min Cnc Saw Cutting Machine 380V Aluminium Band Saw VF4550-12

Product Details:

Place of Origin:	China
Brand Name:	HEINEDA
Model Number:	VF4550-12

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	6-8 workdays
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Model:	VF4550-12	Hydraulic System:	42 ± 2
Power Requirements:	380 V, 3-phase, 50Hz	Aw Specification:	34 Width X 1.1 Thick X5260 Long (mm)
Verticality:	≤0.5mm	Flatness:	≤0.5mm
High Light:	2000m/Min Cnc Saw Cutting Machine , 2000m/Min Aluminium Band Saw , Cnc Saw Cutting Machine 380V

VF4550 - 12 Vertical High Speed With Saw Machine 500 ～ 2000 m / min

Technical specifications and parameters

Equipment name			VF4550-12
Sawing ability			Throat: 450mm (on the upper armor hydraulic lift and lock)
			Throat: 500 mm
			Tour: 1200 mm
Saw speed			500 ~ 2000m / min (Variable Frequency Speed)
Saw specification			34 width x 1.1 thick x5260 long (mm)
Sawband tensioning			Hydraulic automatic tensioner, broken zone automatic shutdown
Saw tape positive way			Adjustable tungsten steel clamp
Gim			0-2000 mm / min (variable frequency speed)
Bedding size			2500 long x 340 width x 50 thick (tempering)
Bed desktop T-slot			The upper mouth width 18, the lower mouth width 31, deep 30
Inlet track			HGW35 linear slide (Silver Taiwan) 2 sliders with 2 sliders.
Saw vessel specifications			Diameter 630, 7075-T651, wheel surface glue treatment
Sawdow specification			Q235 steel sheet welding, depletion processing, precision machining
Bed desktop specifications			Type steel group welding, depletion processing, precision machining
Motor Power		Sawband motor	7.5 kW (Dongyuan variable frequency motor)
		Hydraulic motor	1.5 kW (Taiwan Group Hydraulic Motor)
		Saw bow feed motor	1.5 kW (Taiwan Dongling reducer)
Saw tape cooling method			Standard air pressure oil fog cooling system
Hydraulic oil capacity			50L (independent hydraulic station)
Power requirements			380 V, 3-phase, 50Hz
Distribution box			Separate distribution box (IP55), located on the side of the machine
Make a box			Design with the front of the machine, use buttons and touch screen operations
Sawing accuracy	Verticality		≤0.5mm
	Flatness		≤0.5mm
Equipment coverage area			7m²
Total equipment			4200kg

Stress name	Pressure value (MPA)
Hydraulic system	42 ± 2
Saw belt tolerance	30000 ~ 32000PSI

FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
