Product Details:
Payment & Shipping Terms:
|
| Features: | Efficient And Reliable | Model: | HX - 4015 |
|---|---|---|---|
| Color: | Blue And White | Advantage: | Fully Automatic |
| Package: | Standard Import Packaging | Automatic Feeding Stroke: | 1300mm Can Be Reversed Feed |
| High Light: | 210mm CNC Metal Saw,CNC Metal Saw HX-4015,210mm CNC Saw Machine |
||

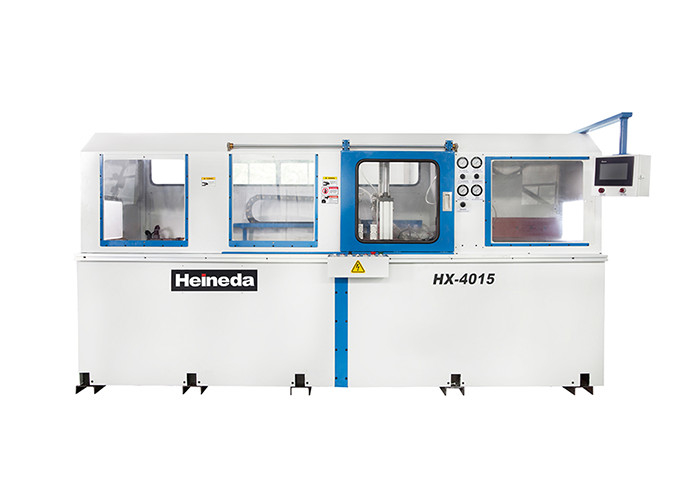

HX-4015 Automatic Aluminum Profile Sawing Machine Can Feed Back
Description
Model: HX-4015(Automatic aluminum type material sawing machine)
▲ HX represents the model of Heineda Company's automatic aluminum plate sawing machine.
▲ 4015 represents the size of the cutting aluminum profile size, 4015 sawing ability: width 400mm, thickness 150mm.
Technical specifications and parameters
| Model | HX-4015 |
| Servo drive system | Servo motor + ball screw |
| Sawing ability | |
| H x W | 200 x200mm, 175 x210mm, 130 x350mm, 20x400mm depends on the size of the saw blade |
| Such as sawing ability chart | |
| Automatic feeding stroke | 1300mm can be reversed feed |
| Automatic feeding accuracy | ±0.1mm |
| Saw blade spindle speed | 1500-3500R.P.M. stepless speed change (can be set according to the actual saw blade size) |
| Saw blade spindle motor | 10 HP |
| Servo feed motor | 1.0 KW |
| Servo feeding motor | 2.0kw |
| Touch screen | 1O" |
| Saw blade size | 12", 14", 16", 18", 20", 22", 24" (1" aperture) |
| Air pressure | 4-6kgs / cm² |
| Mechanical Dimensions | 3420 x 2230 x 1770 mm |
| Packing size | 3750 x 2380 x 2170 mm |

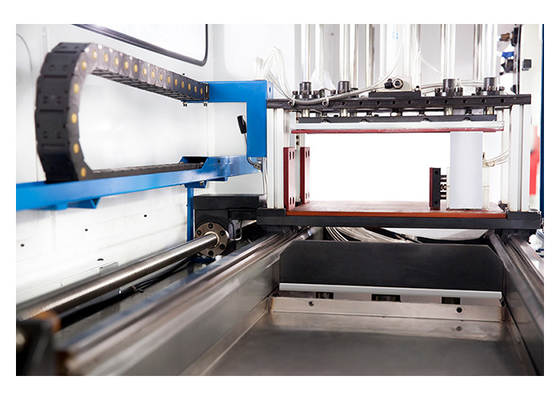

Product display
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
