Computerized High Speed Circular Saw Machine 3800mm Copper Sheet Cnc Cutting Saw

CNC Precision Sheet Circular Saw Machine For Copper Sheet Sawing

Description

1. Suitable for cutting aluminum alloy plate, high efficiency(3 times of band sawing machine), high precision, low wear.

2. Ball jacking device used in work table, which can make material sliding, effectively reduce labor intensity.

3. Gear transmission, pneumatic clamping, mist cooling

4. Pneumatic control material clamping and universal ball lifting system.

5. Automatically generate the optimazation sawing solution, can save personal calculation time and enhancing material utilization efficiency, which can save labor cost, material and inhance the efficiency.

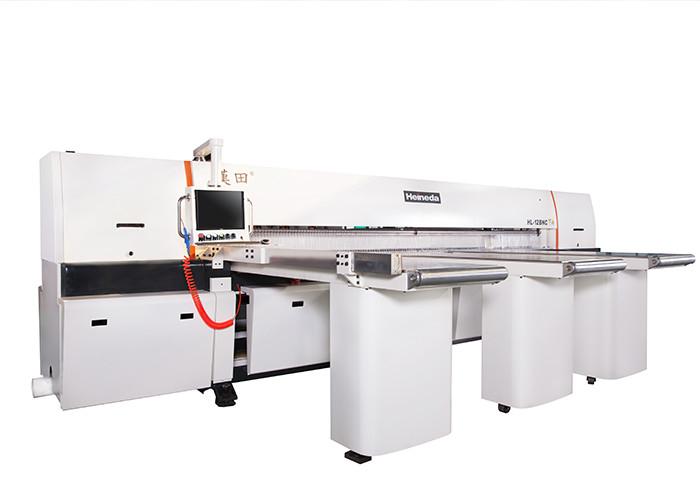

Model: HL-12BNC computer aluminum plate sawing machine

▲ HL represents the model of Aluminum plate sawing machine in Heineda.

▲ 12 represents the size of the aluminum plate sawing machine, 12 can be sawed 3800 mm.

▲ BNC represents this aluminum plate sawing machine for fully automatic model.

Technical specifications and parameters

Mechanical characteristics

▲ Touch-style operation screen:

1. Touch 10 inch operation screen.

2. Alternatively, multiple sets of workbenches can be set, which is convenient for handover.

3. Guide input function.

4. Fault self-detection function.

▲ Work clip seat:

1. The two-side bed rail of the work clamp is composed of welding steel beam, and the gear and the raft drive are plated with a gear and a tooth row drive while plating a hard chrome rail and the other side, and the magnetic ruler reaches a precise degree in double ratio. With reduction and 2 kW daily servo motor precision and fast drive positioning, the maximum speed reaches 6 meters per minute.

▲ Pressure beam structure:

1. Adopt integral pressure beam structure, gear strip and cylinder matching, uniformly drive the rolling beam, and the pressure is uniformly distributed on both sides of the cut center line, and the strip is installed in the bottom of the pressure beam to avoid the press, press The surface of the damaged work, ensuring precision cutting quality.

▲ saw:

1. Adopt the upper and lower parallel linear slide rails, effectively reduce the interlocking of the sawing movement, enhance the smoothness of the huge movement, and effectively reduce the shift shaking of the movement to achieve the best cut line accuracy.

2. Main saw motor 20HP (15 kW), the giant scooter uses a 2HP (1.5 kW) variable frequency motor with the speed reducer and precision gear tooth row drive, the main saw with the oil cylinder, so the saw is more powerful, avoiding the traditional chain drive The truck saw, squeezing, etc. generated.

3. Sawing Cutting Positioning can start cropping from the program width editing settings.

4. A square tank joint is disposed under the sawing, and there are two sides of film to cover each other, extend to the end of the cut, to ensure the dust tank reaches the highest dust collective effect.

5. The sawing stroke cuts up to 6 meters per minute, and the back reaches 7 meters per minute, and the height of the work is not adjusted by the panel knob, and the cutting speed can be changed at the time of cutting. Users can adjust their preference requirements different from their own nature.

▲ Main Table:

The main worksheet is also a floating table. The copper air drum is disposed on the panel of colloidal chrome plating. When the durability is enhanced, the work efficiency of the workers are also improved.

▲ Crossing claws:

1. Number of work clips standard configuration: 12 support clips.

2. Each jam is equipped with a cylinder with a lever method, and when it is pulled the working object, it is possible to ensure that the work material does clamp the sheet.

▲ dustproof

Segmental dustproof pieces use transparent plastic sheets that can effectively inhibit dust discharge and can achieve safety protection.

▲ Electronic control box configuration:

1. All electronic parts are purchased in Taiwan.

2. The servo motor and servo drive are Japanese Panasonic.

3. The inverter is Taiwan's English Waritatten.

4. Electronic parts do not need cooling system at all, for popular electronic parts, can purchase replacement on the market without worrying about dust invasion, as long as it is regularly cleaned.

▲ Power supply:

1. The power supply is a three-phase supply for industrial, with a voltage of 380V / 50Hz.

▲ air pressure supply:

1.Use air pressure to 5 ~ 6 kg / cm

▲ dusty:

1. The supplier provides a scraper tandem system and is simultaneously installed in place with the sawing machine to ensure the chips.

2. ▲ Standard equipment:

1. Solden saw blade: carbide saw blade (aluminum plate special).

2. Workclip: 12.

3. Floating feedstock: 1520mm x 500mm x 3.

4. Toolbox contains a tool 1 group.

5. The main saw motor is arranged in the machine.

Occupying the floor

Main features of the equipment

•The sawing foundation is in the lateral suspension structure; the guide device is arranged with double—row roller type straight slide rail.
•In the travelling of sawing foundation, the grinding gear, rack and servo motor are arranged to guarantee the compatibility of sawing speed.

Packaging Details
Foam inside ,plastic film outside ,wooden box is optional.

FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
