Product Details:
Payment & Shipping Terms:
|
| Model: | HL-10CNC | Floating Platform: | 2 Seats |
|---|---|---|---|
| Sawing Length: | 3300MM | Sawing Width: | 3300MM |
| Saw Blade Outer Diameter: | 550/630 | Clamping Gripping: | 8 Groups |
| Warranty Of Core Components: | 1 Year | Service: | Service Machinery Overseas |
| High Light: | CNC Automatic Circular Saw Cutting Machine,3300MM Automatic Circular Saw Cutting Machine,3300MM cnc circular saw cutting machine |
||

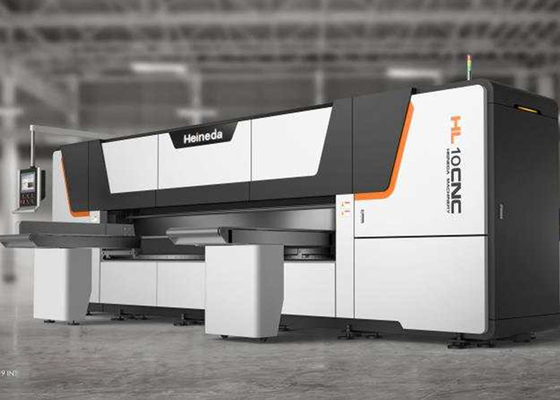

HL-10CNC CNC Automatic Circular Saw Machine For Copper Plate Sawing
Description
● The servo motor cooperates with the ball screw feeding system, which can accurately and quickly send the material to the exact position, improving work efficiency
● The saw blade cutting feed system uses a servo motor and rotates with the ball screw to ensure the speed of the saw blade movement and increase the accuracy and stability of cutting.
● Hydraulic power chip cleaning steel brush can effectively remove iron chips from saw blade teeth, improve cutting efficiency and prolong saw blade life
● The unique automatic material distribution system can separate the unneeded material head and material tail from the required finished material during the sawing process to improve work efficiency
The gear elimination device can effectively eliminate the gear gap in the gear box, reduce the vibration of the blade during the sawing process, and prolong the life of the saw blade
● Digital monitoring control panel is easy to operate
● Efficient, accurate and stable 24-hour continuous work
Model: HL-10CNC automatic high-speed precision aluminum plate circular saw machine
▲ HL represents the model of Aluminum plate sawing machine in Heineda.
▲ 10 represents the size of the aluminum plate sawing machine, 10 can be sawd in width of 3300 mm.
▲ CNC represents this aluminum plate saw cutting machine for numerical control automatic model.
Technical specifications and parameters
| Model | HL-10CNC | |
| Floating platform | 2 seats | |
| Sawing length | 3300MM | |
| Sawing width | 3300MM | |
| Sawing height | 160/200 | |
| Saw blade outer diameter | 550/630 | |
| Clamping gripping | 8 groups | |
| Rotational speed of Sawing blade | 3900 | |
| Motor of sawing blade | 22/30 | |
| Feeding servo motor | 3 | |
| Travelling motor | 2(AC) | |
Packaging Details
Foam inside ,plastic film outside ,wooden box is optional.
| Quantity(sets) | 1 - 1 | 2-5 | >5 |
| Est. Time(days) | 15 | 30 | To be negotiated |
Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
