Product Details:
Payment & Shipping Terms:
|
| Length: | 1.435 Mm | Width: | 564 Mm |
|---|---|---|---|
| Height, Saw Head In Lowered Position: | 949 Mm | Total Weight: | 210 Kg |
| Material Support Hight: | 500 Mm | Height, Saw Head In Highest Position: | 1.185 Mm |
| High Light: | Semi Automatic Power Hack Saw,Metal Cutting Hacksaw Machine Space Saving,Power Hack Saw Space Saving |
||

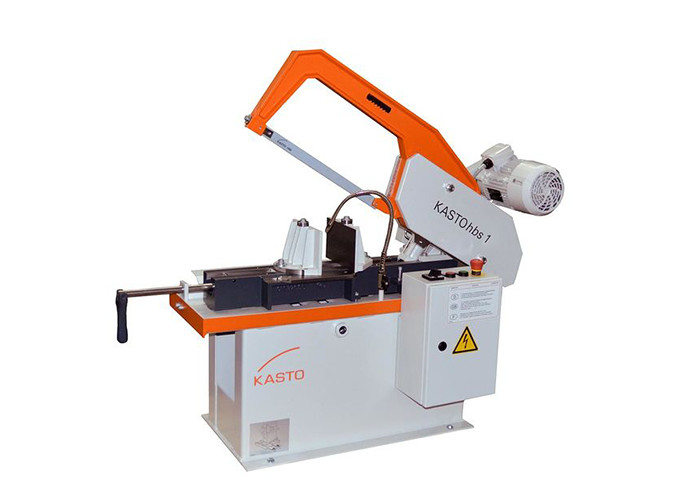

Semi - Automatic Hacksaw Cutting Range Up To 240 x 190 mm Space Saving
Product Details
The KASTO power hacksaw is the right choice when metal is only cut occasionally. The saw is very universal in use and especially space saving due to the small dimensions.
Cutting range
Cutting range 90°
210 mm / 240x160 mm / 200x200 mm
Cutting range + 45°
150 mm / 150x100 mm, 130x200 mm / 145x145 mm
Mass and weights
| Length | 1.435 mm |
| Width | 564 mm |
| Height, saw head in lowered position | 949 mm |
| Height, saw head in highest position | 1.185 mm |
| Total weight | 210 kg |
| Material support hight | 500 mm |
| Material support height with rotating foundation frame (accessories) | 555 mm |
Performance characteristics
| Connected load | 2,0 kW |
| Saw motor, Power | 0,8/1,0 kW |
| Average cutting speed | 16/32 m/min |
| Stroke speed | 62/125 m/min |
| Dimensions of saw blade | 400x30x1,5 mm |
Product detail presentation
Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
