Product Details:
Payment & Shipping Terms:
|
| Model: | HX-4020 | Servo Feed Motor: | 1.0 KW |
|---|---|---|---|
| Saw Blade Size: | 12", 14", 16", 18", 20", 22", 24" (1" Aperture) | Mechanical Dimensions: | 3420 X 2230 X 1770 Mm |
| Packing Weight: | 3100kgs | Hydraulic Feed Horsepower: | 0.75kw 1HP |
| High Light: | PLC Control Cnc Horizontal Band Saw,Cnc Horizontal Band Saw High Accuracy,PLC Control Horizontal Band Saw Machine |
||
Automatic CNC Precision Circular Saw Machine Material Saw Machine Automatic Feeding
Description
The band saw is mainly composed of a saw frame, a saw wheel, a transmission part, a saw belt guide wheel group, a waste conveyor, a hydraulic system, and an electric control system.
The sawing blade features as horizontal sawing; it is suitable to rather large and broad materials.
The feeding is driven by oil pressure to maintain stability and great power.
The compression clamp tools are arranged at each side of sawing blade so that materials maintain stable in the sawing.
The clamp tools of feeding platform include 2 groups upward compression tools + 2 groups of lateral compression tools.They are suitable to the sawing of scraggling materials and synchronized sawing of numerous materials.
compensation function of feeding error is able to minimize feeding error.
PLC control method is adopted; the human—machine interface is touchable and easy to learn.
The withdrawal aims to make slight distribution to the materials and prevent cutting surface from being affected by withdrawal.
12”- 24" sawing blade can be selected and adopted according to the actual demand.
Technical specifications and parameters
| Model | HX-4020 |
| Servo drive system | Servo motor + ball screw |
| Hydraulic feed horsepower | 0.75kw 1HP |
| H x W | 200 x200mm, 175 x210mm, 130 x350mm, 200x400mm depends on the size of the saw blade |
| Saw Blade Spindle Motor | 7.5kw 10HP Optional pump modules |
| Automatic feeding stroke | 1300mm can be reversed feed |
| Automatic feeding accuracy | ±0.1mm |
| Saw blade spindle speed | 1500-3500R.P.M. stepless speed change (can be set according to the actual saw blade size) |
| Saw blade spindle motor | 10 HP |
| Servo feed motor | 1.0 KW |

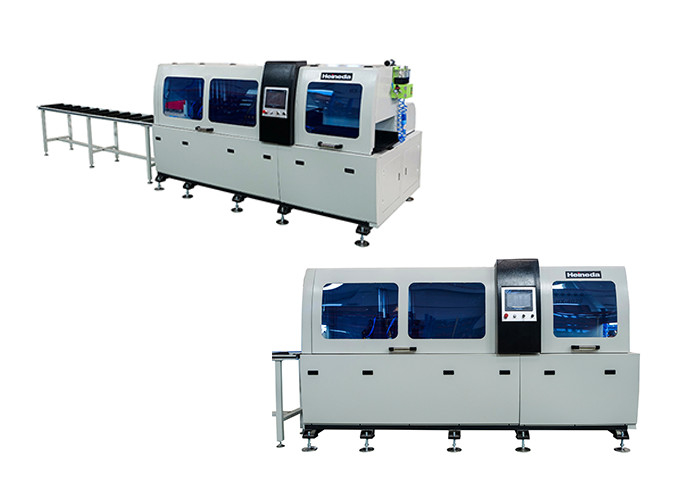

Product display
Advantage
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
