0.75KW Automatic CNC Vertical Band Saw With Electric Control System VH500

VH500 High Speed Vertical Band Saw Machine Band Saw Machine

Equipment overview

Known as the precise sawing machine plan supplier, Heineda has develûped from traditional equipment, semi-autocontrol machinery to automatic digital control machinery and is possessed of above 100 types of self- -researched anddeveloped equipment. In the manufacturing of precise sawing machinery of aluminum, Heineda products have wonrecognition from a batch of aviation, military and civil equipment manufacturers in China mainland market.
Model: VH500 High Speed Vertical Band Saw
▲ VH stands for the vertical band sawing machine model of Hantian Company.
▲ 500 represents the sawing capacity of the sawing machine
Maximum sawing height Φ400mm;
Maximum sawing width 500mm;
The maximum sawing throat depth is 580mm.
If a clamp is added within the scope of the workbench, diagonal cutting can be performed.

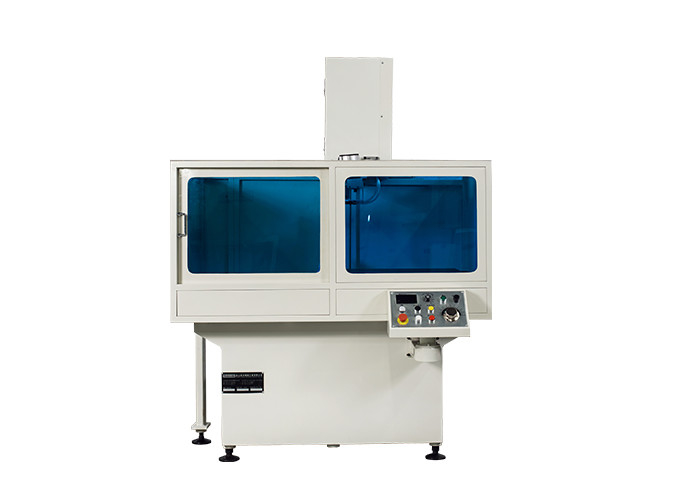

Equipment renderings

The main technical parameters

Equipment composition and characteristics

The band saw is mainly composed of a saw frame, a base, a saw wheel, a transmission part, a saw belt guide wheel group, a waste conveyor, a hydraulic system, and an electric control system.

Description of main parts of vertical band saw VH500
The band saw is mainly composed of a saw frame, a saw wheel, a transmission part, a saw belt guide wheel group, a waste conveyor, a hydraulic system, and an electric control system.

The saw wheel part is made of 7075T6 stretched aluminum plate, hard anodized. After processing, it is corrected by dynamic balance, with good performance, high mechanical properties, and can withstand high speed and high tensile loads.

The transmission part is driven by the TECO frequency conversion motor to drive the active pulley to rotate, thereby driving the saw belt to run at high speed. The speed of the saw belt is adjusted by the frequency converter to control the output revolutions of the motor, and is displayed by the digital meter.

The saw belt wheel set bearing and key part bearings are all made of NSK products.

The travel switch is used to detect whether the tension is abnormal, and the machine will automatically stop if the abnormality is abnormal. The passive wheel adopts electromagnetic brake. When abnormality occurs, the stable pressure acts on the brake disc to control the rotation of the saw wheel.

The hydraulic part adopts an independent pump station and is controlled by a centralized solenoid valve. The solenoid valves are all made of Taiwan products. Except for the parts that must be connected with hoses, they are all connected by steel pipes to effectively reduce pressure loss.

The transmission mechanism of the sawing machine is precisely balanced and corrected to minimize the vibration and ensure that the saw belt is not easy to break.
The guide part of the saw band adopts clamping rollers, one set at the top and the other, the rollers are made of alloy steel, and are precision ground after surface nitriding treatment, with high precision and good wear resistance.
The driving roller of the waste conveyor is designed with a solid shaft to ensure no breakage during normal use; the roller bearing adopts double-sided sealed bearing to avoid the entry of aluminum chips and improve the service life.

Heineda Service
For the products produced by the contract equipment, Heineda will cooperate with the customer to identify and test the quality of the equipment during the equipment acceptance period.
The establishment of parts warehouse.
In-plant service introduction
Regular free return visit service
Complete turnkey project (process, management, maintenance, training, production)
Establish a three-level maintenance system.
Free software upgrade service.
Proposal for preliminary construction plans.

Obtained a number of patent certificates
