| Saw Band Size: | 6940*34*1. 1*2—3T | Saw Belt Tensioning Method: | Independent Hydraulic Tensioning/relaxation |
|---|---|---|---|
| Place Of Origin: | China | Automatic Feeding: | Automatic Length Setting, Single Feeding 500mm |
| Chip Removal Method: | 15HP Pulsed Filter Core Collector | Feature: | Fully Automatic Feeding |
| High Light: | Cnc Saw Cutting Machine 800mm,Cnc Vertical Bandsaw For Metal Cutting,Cnc Saw Cutting Machine 400mm |
||
Fully Automatic High Speed Vertical Band Saw Machine Material Saw
Equipment composition
The band saw is mainly composed of a saw frame, a saw wheel, a transmission part, a saw belt guide wheel group, a waste conveyor, a hydraulic system, and an electric control system.

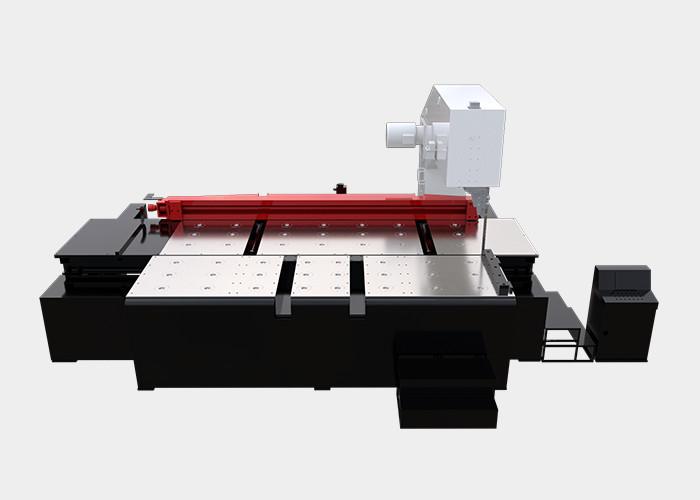

Product display
Parameters Table
| Project name | VH0408 High Speed Vertical Band Saw |
| Maximum sawing capacity | 400*800mm high(H)* width(W) |
| Motor | 30kw |
| Saw Belt Speed | 200/2000m/min stepless adjustable |
| Saw Band Size |
6940*34*1. 1*2—3T |
| Saw belt tensioning method | Independent hydraulic tensioning/relaxation |
| Feed Way | Hydraulic drive, speed infinitely adjustable |
| Automatic feeding | Automatic length setting, single feeding 500mm |
| Chip removal method | 15HP pulsed filter core collector |
Features
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
