400mmx 120mm Aluminum Profile Cutting Saw / Aluminum Extrusion Cutting Saw

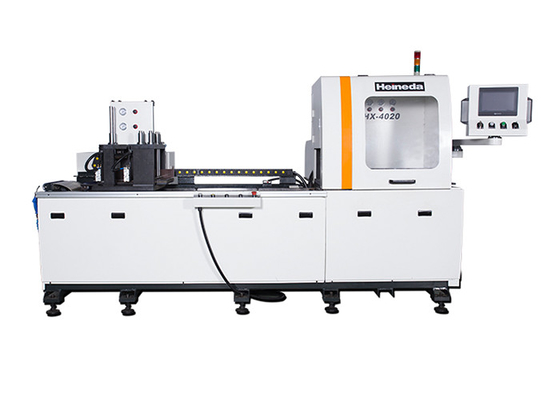

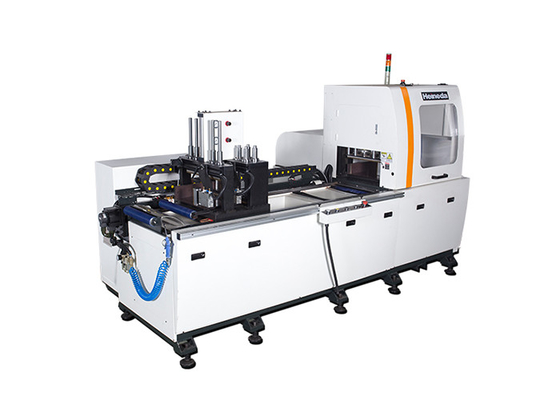

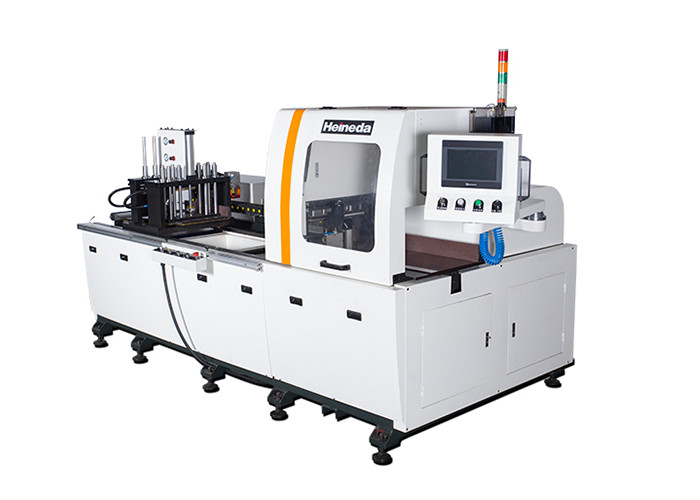

HX - 4020 Automatic Aluminum - Shaped Saw Cutting Machine

Description

Model: HX-4020

▲ HX represents the model of Heineda Company's automatic aluminum plate sawing machine.

▲ 4020 represents cutting aluminum profile size size, 4020 sawing ability: width 400mmx thick 120mm.

This apparatus can be applied to the sawing of aluminum plates, copper plates, composite panels, plastic plates, and the like.

Special sawing action design: After the saw blade linear cut-off material, after the air pressure cylinder is opened, the saw blade returns to the origin. This feature is to avoid the material in the process, the saw blade is affected. Surface smoothness and accuracy are designed, so that the surface of the material is more smooth and accurate, and the precision is increased by ± 0.1mm.

characteristic

1. Automatic feeding, automatic positioning, automatic injection, automatic saw

2. Automatic feeding stroke 500mm can be recreated

3. Suitable for wider, larger materials, and can be skewed in a customer setting angle. (Such as + 25 °)

4. Using server motors to drive ball screw accuracy

5. Use Siemens PLC to control high stability

6. Use the touch screen, easy to operate

7. In the mold mode, hydraulic is driven, and the sawing stability is high.

8. You can do 30 sets of memory size group settings, and you can set up to 6 sizes per group.

9. The computer will automatically record the time and number of time and quantity of each processing, so that the cost is calculated.

10. Processing process machine automatic sensor or optional self-setting tail length function

11. Materials can be placed in parallel, cutting

12. Feeding method: 1. Step feed 2. Recipropical feed 3. Manual feed

13. None variable speed can set the spindle speed (1500-3500.r.p.m) and arbitrarily selected 12 "~ 24 " saw blade

Vacuum injector

Using vacuum generating principle, the cutting oil is sprayed, reaches the lubricating cooling function to ensure that the saw blade does not decompose, improves the sawing precision, and extension the sawing life

Suitable for sawing

Sleeping sheet, aluminum, copper, PVC, plastic steel, electric board, acrylic plastic, Teflon, honeycomb, metal, etc.

Standard accessories

24 '' saw blade X1, dust collector and dust tube, auxiliary feed rack 3.5 meters, a set of toolbox.

Technical specifications and parameters

Main accessories list

Obtained a number of patent certificates

How to judge the stability of automatic aluminum profile cutting machine equipment?

1. Equipment materials. The materials used include machine sheet metal materials and electrical accessories. What is the thickness of the iron plate on the table top of the observable automatic aluminum profile cutting machine equipment? Is the iron plate of the work surface a whole plate or half of it? What type of guide rail is the feeding guide, and what is the size of the guide rail? And what is the weight of the whole machine? If the sheet metal material of the equipment is thin, the weight of the equipment will naturally be lighter, and which brands of electrical accessories are used, the stability and service life of different brands must be different. We may know all of these through pictures or by consulting the manufacturer.
2. Structural appearance. Observe whether the design structure of the equipment is reasonable. The automatic aluminum profile cutting machine equipment is not a complicated equipment. Besides, many users often deal with machinery, and they know some general mechanical knowledge. You can compare the products of several manufacturers, compare their work surface size, type and size of feeding and feeding guide rails, the weight of the whole machine, whether the appearance of the equipment is painted or baked, the workmanship, and other appearance and structural details of the equipment, etc.

FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
