Product Details:
Payment & Shipping Terms:
|
| Saw Height: | 400mm | Total Power: | 14kw |
|---|---|---|---|
| Total Weight: | 6T | Saw Strip Specification: | 6830x41x1.3mm |
| Code: | 0012 | Brand: | Heineda |
| High Light: | CNC Horizontal Band Saw 400mm,Reliable CNC Horizontal Band Saw,auto band saw 400mm |
||

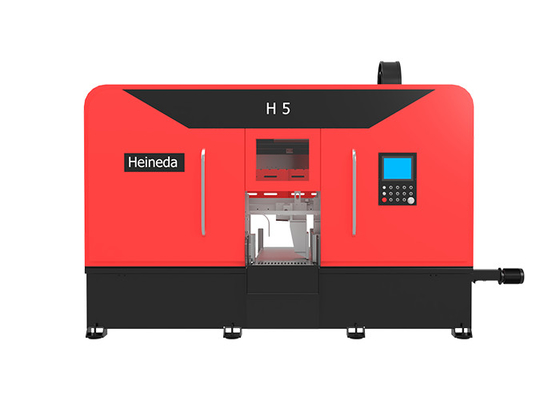

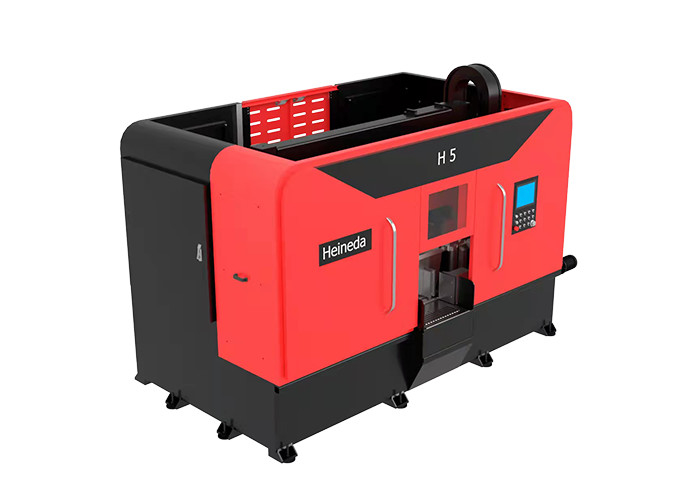

H5 CNC High Speed Precision Band Saw Machine Fast And Reliable
Technical specifications and parameters
| Model | H5 band saw machine |
| Brand | Heineda |
| Code | 0012 |
| Saw length (mm) | Pass |
| Sawing width (mm) | 500 |
| Saw height (mm) | 400 |
| Saw strip specification (mm) | 6830x41x1.3 |
| Total power (kW) | 14 |
| Total weight (T) | 6 |
Features
1. Single automatic fixed ruler ≥ 450mm, which can achieve automatic multiple cycle fixed ruler
2. Fully automatic ruler and semi -dynamic fixed ruler dual mode can be convertible
3. The automatic feed uses the servo ruler positioning, precise, fast, and reliable.
4. The mechanical structure is a heavy structural design to ensure the precise and stable operation of the machine
5. The saw rail running rail adopts a precision pre -pressure line -up guide rail, which is precise and stable.
6. The header of the machine adopts a servo motor+roller screw form to assist the nitrogen balance system.
7. The sawbone drive end adopts a large -torque umbrella gear deceleration motor system
8. Automatic crumb function
9. Use a saw with hydraulic tension function and guided section hydraulic clamping function.
10. Automatic dandruff steel brush mechanism can achieve transmission adjustment.
11. Saw belt -oriented shocking function, maximize extension of the use of the use of the sawbring and sawing accuracy
12. Ultra -short tail material design, the shortest tail material ≤30mm
13. Use HeineDa to independently develop patented PLC control and operating system
14. Expansion and optional function: Saw belt pressure monitoring function, sawband partial oblique monitoring function, sawing belt life reminder function, and saw cutting output statistical function.
Product display
Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
