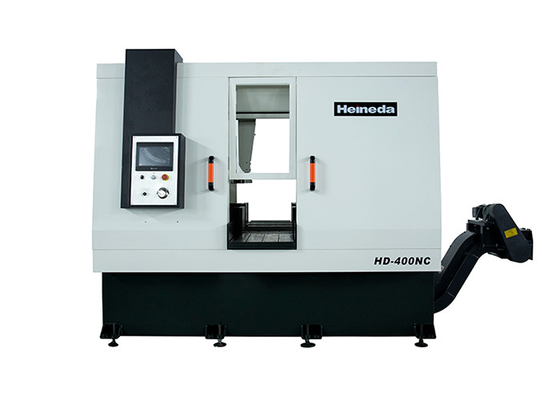

400mm Cnc Metal Cutting Band Saw / Cnc Horizontal Band Saw HD-400NC

HD-400NC Aluminum Ingot Round Bar High Speed Horizontal Band Saw

Product Description

1.1 Equipment Name

HD-400NC round rod high speed horizontal zigza sawing unit

1.2 device use

Mainly used for crop of aluminum ingots and aluminum alloy.

1.3 sawing products variety and specifications

● Alloy type: 1 ××× -7 ××× series aluminum alloy

1.4 Main technical parameters of equipment

● Maximum sawing ability: 400 (mm)

 400x400

● Sawlers diameter: φ700 x 2 round (mm)

● Saw speed: 500 ~ 2000 m / min (Variable frequency speed)

● Sawdow feed speed: 100 ~ 2000mm / min (adjusted according to sawing materials and specifications)

● Saw tape size mm: 7050L × 34W × 1.1t (hard alloy saw)

● Cutting thickness mm: ≤ 2

● Take the slope: ≤0.5 °

● Length fixing accuracy mm: ± 1

● Sawing is not flat mm: <± 0.5

● Saw strip life m2: 50-150

● Saw surface roughness μm: ≤ 50

● Cutting rate cm2 / min: 500 ~ 1500 (cutting efficiency unit, cutting cross-sectional area within unit time)

● Noise index: ≤ 85dB

● Saw tape type: single lying hydraulic tensioner / relaxation

● Insert mode: hydraulic drive

Working paragraph Ground height: 770mm

● Safety:

The broken strap is tension pressure sensing, and the pressure is abnormal, the pneumatic hydraulic brake device, the saw trip stops rotation.

The bullfin is adopted by current overload protection.

The saw belt upper arm has a collision protection function.

1.5 main features of sawing unit

Material consumption less / sawing efficiency high / operating costs low / safety protection full range / energy saving. Environmental protection

1.6 energy media requirements and consumption

● Energy media conditions

Power: three-phase AC power

Voltage: AC380V ± 10%

Frequency: 50Hz ± 2%

● Compressed air: General industrial compressed air

Air pressure: 0.4 MPa ~ 0.6 MPa (equipment itself air source access point has pressure regulating filter)

Air traffic: ≥ 3 m³ / h

Air quality: Filtration and drying

● Equipment operation environment requirements

The highest ambient temperature: 45 ° C

Minimum ambient temperature: -10 ° C

Relative humidity: <67%

● Energy and media consumption (consumption of energy and media during normal operation of equipment is shown in Table 2-1)

Table 2-1 Energy and media consumption calculated by theory

The equipment execution standard

Metal cutting general technical conditions GB / T 9061-2006

General technical conditions for metal cutting welding JB / T 9873-1999

Horizontal Tape Saw Bed Part 2 Parameters JBT4318.2-2002

Horizontal Tape Saw Bed Part 3 Accuracy Test JBT4318.3-2002

Horizontal Tape Saw Bed Part 4 Technical Conditions JBT4318.4-2002

General technical conditions for metal cutting hydraulic system JB / T10051-1999

Industrial machinery and electrical equipment, the first part of the general technical conditions GB / T 5226.1

Machine safety protection GB 16454

Electrical system GB 5226.1

Equipment All components and various instruments of various instruments are all units (Si) units; the main components of the equipment include mechanical, electrical and electronic devices, are reliable security guarantees to prevent damage to errors or accidental accidents.

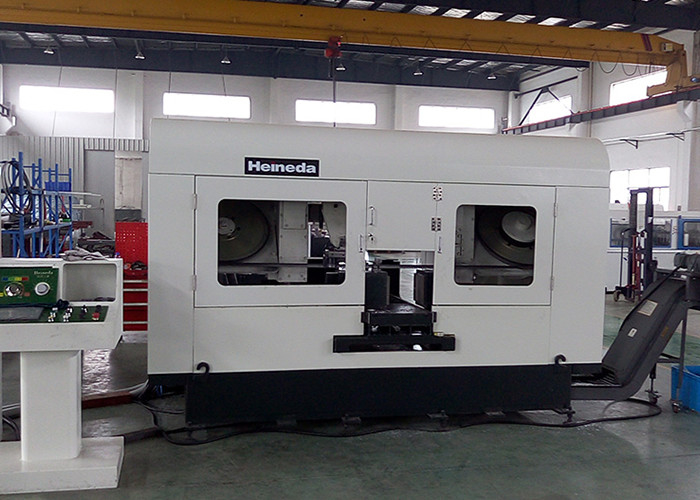

Product display
