HD-400NC High - Speed Horizontal Band Saw Cutting Machine For Round Bar Cutting
Product Description
1.1 Equipment Name
HD-400NC round rod high speed horizontal zigza sawing unit
1.2 device use
Mainly used for crop of aluminum ingots and aluminum alloy.
1.3 sawing products variety and specifications
● Alloy type: 1 ××× -7 ××× series aluminum alloy
1.4 Main technical parameters of equipment
● Maximum sawing ability: 400 (mm)
400x400
● Sawlers diameter: φ700 x 2 round (mm)
● Saw speed: 500 ~ 2000 m / min (Variable frequency speed)
● Sawdow feed speed: 100 ~ 2000mm / min (adjusted according to sawing materials and specifications)
● Saw tape size mm: 7050L × 34W × 1.1t (hard alloy saw)
● Cutting thickness mm: ≤ 2
● Take the slope: ≤0.5 °
● Length fixing accuracy mm: ± 1
● Sawing is not flat mm: <± 0.5
● Saw strip life m2: 50-150
● Saw surface roughness μm: ≤ 50
● Cutting rate cm2 / min: 500 ~ 1500 (cutting efficiency unit, cutting cross-sectional area within unit time)
● Noise index: ≤ 85dB
● Saw tape type: single lying hydraulic tensioner / relaxation
● Insert mode: hydraulic drive
Working paragraph Ground height: 770mm
● Safety:
The broken strap is tension pressure sensing, and the pressure is abnormal, the pneumatic hydraulic brake device, the saw trip stops rotation.
The bullfin is adopted by current overload protection.
The saw belt upper arm has a collision protection function.
1.5 main features of sawing unit
Material consumption less / sawing efficiency high / operating costs low / safety protection full range / energy saving. Environmental protection
1.6 energy media requirements and consumption
● Energy media conditions
Power: three-phase AC power
Voltage: AC380V ± 10%
Frequency: 50Hz ± 2%
● Compressed air: General industrial compressed air
Air pressure: 0.4 MPa ~ 0.6 MPa (equipment itself air source access point has pressure regulating filter)
Air traffic: ≥ 3 m3 / h
Air quality: Filtration and drying
● Equipment operation environment requirements
The highest ambient temperature: 45 ° C
Minimum ambient temperature: -10 ° C
Relative humidity: <67%
● Energy and media consumption (consumption of energy and media during normal operation of equipment is shown in Table 2-1)
Table 2-1 Energy and media consumption calculated by theory
| Serial number | Project Description | unit | consumption | use | Note |
| 1 | Electricity | KWH | 40 | Power supply | AC 380V 50Hz |
| 2 | Compressed air | M3 / h | 3 | Saw with angular cooling and aluminum chopping | Generally compressed air |
| 3 | Cooling oil | ML / H | 40 | Saw tape cooling | Accu-lube cooling oil |

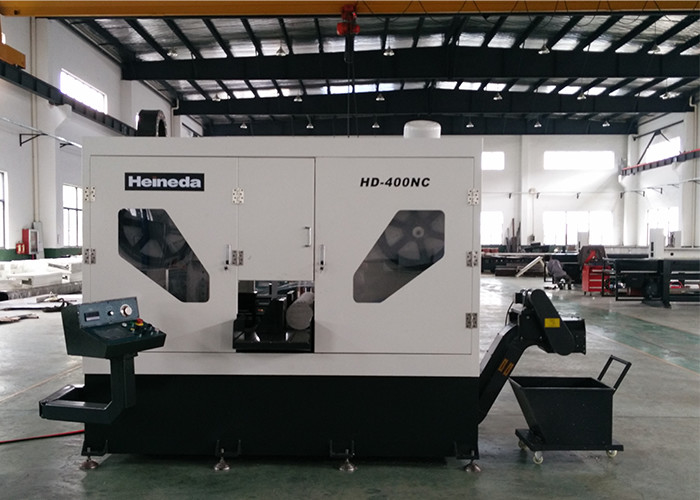

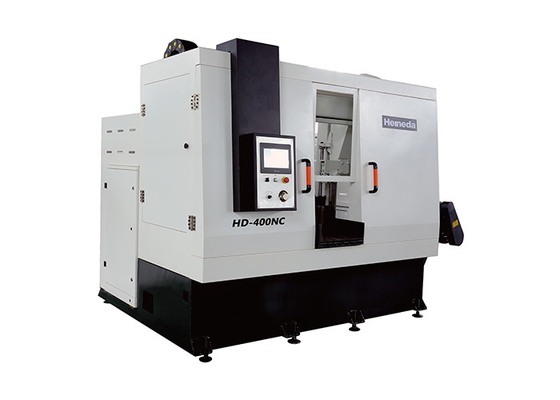

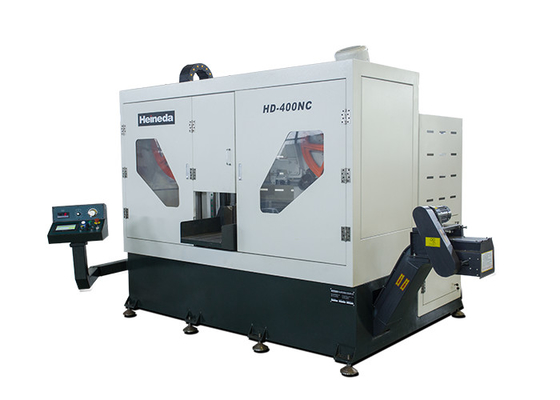

Product display
The list of main components
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
