H600mm W600mm CNC Horizontal Band Saw

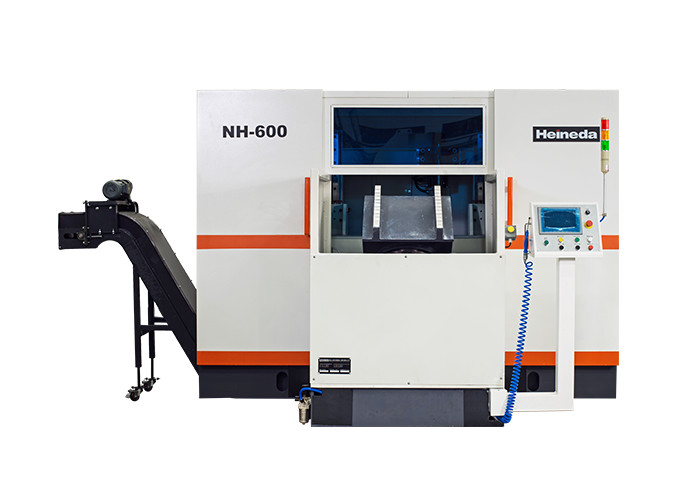

Large Image : H600mm W600mm CNC Horizontal Band Saw

Product Details:

Place of Origin:	China
Brand Name:	HEINEDA
Model Number:	NH-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard Export Package
Delivery Time:	6-8 workdays
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Maximum Sawing Capacity:	H600 W600 (mm)	Sawing Roughness Mm:	<±0.5
Feed Motor Power:	2 KW	Cut Slope:	1°
Saw Band Size Mm:	6180L×34W×1.1t (TAIJU)	Hydraulic Motor Power:	1.5KW
Highlight:	W600mm CNC Horizontal Band Saw , H600mm CNC Horizontal Band Saw

NH-600 High Speed Horizontal Band Saw Cutting Machine For Aluminum Alloy Riser Saw Cutting

Description
Model: NH-600
Name: High-speed horizontal band sawing machine
▲ NH-600 represents the model of high-speed horizontal band sawing machine of Heineda Company.
▲ 600 means the maximum sawing capacity is 600 in height and 600 in width (mm).

Technical specifications and parameters

Maximum sawing capacity	H600 W600 (mm)
Saw belt speed	500～3000 m/min (frequency conversion speed regulation)
Sawing speed	0～2000mm/min (adjusted according to the grade and specification of the sawing material)
Saw Band Size mm	6180L×34W×1.1t (TAIJU)
Cut slope	1°
Sawing roughness mm	<±0.5
Saw belt tension mode	independent hydraulic tension/relax
Feeding method:	servo motor + ball screw
Saw belt motor power	7.5KW
Feed motor power	2 KW
Hydraulic motor power	1.5KW

Product display
H600mm W600mm CNC Horizontal Band Saw 0

Security
The broken belt adopts tension and pressure sensing, and the boring car adopts current overload protection.
The machine adopts a closed protective cover, which is surrounded as a whole to prevent aluminum chips from splashing.

Main features of sawing unit
Less material consumption / high sawing efficiency / low operating cost / complete safety protection functions / energy saving. Environmental protection

The main parameters

Serial number	item	unit	parameter
1	Rotation		Rotary bed
2	Rotation angle		180° reciprocating rotation
3	drive motor power	KW	2.2
4	allowable load	Kg	300
5	Repeatability	second	30

FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
