Jiangsu Heineda Machinery Industrial Co.,Ltd
Home ProductsCNC Metal Saw

industrial CNC Metal Saw Thickness 150mm

China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Jerry

I'm Online Chat Now

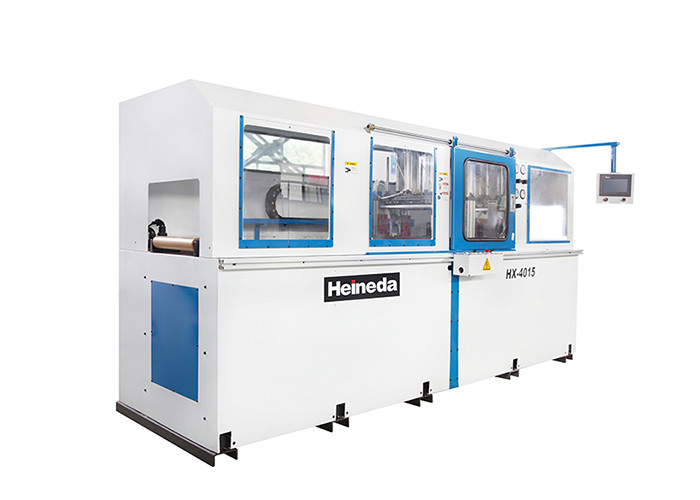

industrial CNC Metal Saw Thickness 150mm

industrial CNC Metal Saw Thickness 150mm
industrial CNC Metal Saw Thickness 150mm

Large Image :  industrial CNC Metal Saw Thickness 150mm

Product Details:
Place of Origin: China
Brand Name: HEINEDA
Model Number: HX - 4015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 6-8 workdays
Supply Ability: 10 sets per month
Detailed Product Description
Features: Efficient And Reliable Color: Blue And White
Advantage: Fully Automatic Package: Standard Import Packaging
Automatic Feeding Accuracy: ±0.1mm Servo Feed Motor: 1.0 KW
Highlight:

CNC Metal Saw 150mm

,

Industrial Metal Saw 400mm

,

CNC Metal Saw HX-4015

HX-4015 Automatic Aluminum Profile Sawing Thickness 150mm Width 400mm

Description
Model: HX-4015(Automatic aluminum type material sawing machine)
▲ HX represents the model of Heineda Company's automatic aluminum plate sawing machine.
▲ 4015 represents the size of the cutting aluminum profile size, 4015 sawing ability: width 400mm, thickness 150mm.
Six advantages of product stability guarantee
1. Product Design
2. Team R&D
3. Manufacturing
4. Performance test
5. Factory self-inspection
6. After-sales service


Technical specifications and parameters

ModelHX-4015
Servo drive systemServo motor + ball screw
Sawing ability
H x W200 x200mm, 175 x210mm, 130 x350mm, 20x400mm depends on the size of the saw blade
Such as sawing ability chart
Automatic feeding stroke1300mm can be reversed feed
Automatic feeding accuracy±0.1mm
Saw blade spindle speed1500-3500R.P.M. stepless speed change (can be set according to the actual saw blade size)
Saw blade spindle motor10 HP
Servo feed motor1.0 KW
Servo feeding motor2.0kw
Touch screen1O"
Saw blade size12", 14", 16", 18", 20", 22", 24" (1" aperture)
Air pressure4-6kgs / cm²
Mechanical Dimensions3420 x 2230 x 1770 mm
Packing size3750 x 2380 x 2170 mm


Product display
industrial CNC Metal Saw Thickness 150mm 0
industrial CNC Metal Saw Thickness 150mm 1
industrial CNC Metal Saw Thickness 150mm 2

FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
