Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | China | Model: | A330NC |
|---|---|---|---|
| Maximum Cutting Width: | 330mm | Maximum Height: | 330mm |
| Single Maximum Feeding Stroke: | 600mm | Name: | Horizontal Band Saw |
| High Light: | Small Diameter CNC Horizontal Band Saw,CNC Horizontal Band Saw high performance,Small Diameter horizontal saw machine |
||

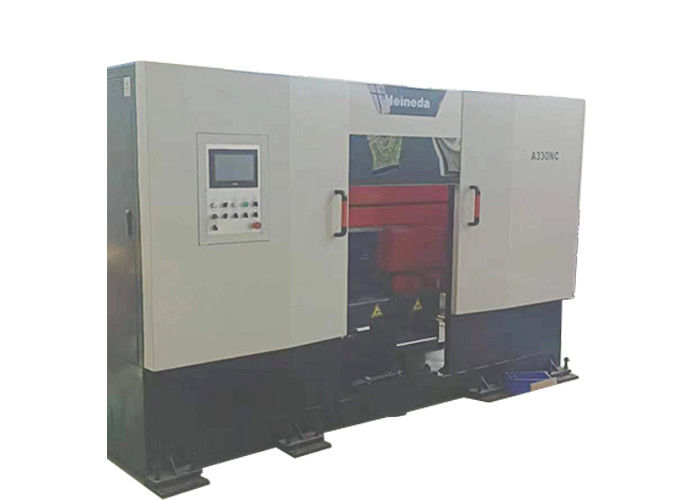

A330NC Small Diameter Automatic Horizontal Band Saw Machine
Description
The A330NC is a small diameter fully automatic horizontal band saw. The maximum sawing width is 330mm, the maximum height is 330mm, and the maximum single feeding stroke is 600mm.

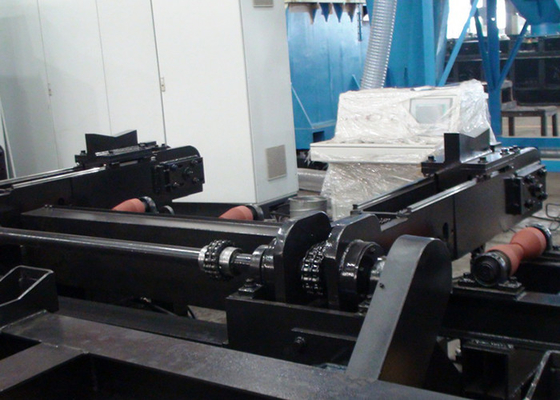

The equipment consists of main parts such as saw frame, column, bed, base, etc. It can complete functions such as automatic clamping, feeding, sizing, sawing, etc., and can adapt to the segmentation of materials within the specification range and the sawing of samples.
Technical specifications and parameters

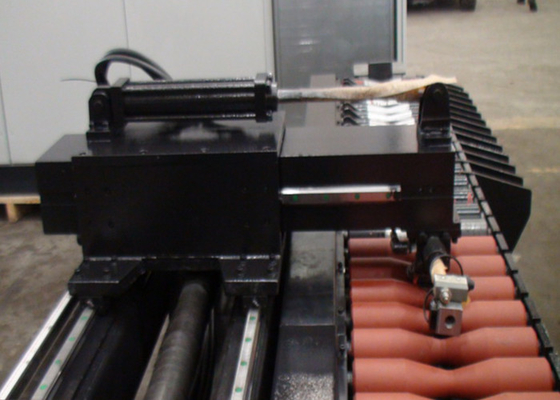

The saw frame of the equipment is the core of the whole equipment, including the driving wheel group and the passive wheel group, the saw belt tension group, the clamping roller group, the saw belt turning group, and the aluminum scrap collection group. Among them, the active and passive wheel sets are designed, precisely machined, and meticulously debugged, so that the saw belt can run stably for a long time, providing a solid foundation for sawing.
The overall structure of the column mechanism directly affects the stability of the operation of the equipment, which is the basis for the stable operation of sawing; the equipment is equipped with a nitrogen balance system, so that the entire complex and heavy equipment can run smoothly and smoothly, reducing impact, reducing vibration, and improving operation stability. Improve the safety of equipment operation, increase the service life of the equipment, greatly improve the performance of the equipment, and improve the overall level of the equipment.
Obtained a number of patent certificates
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
