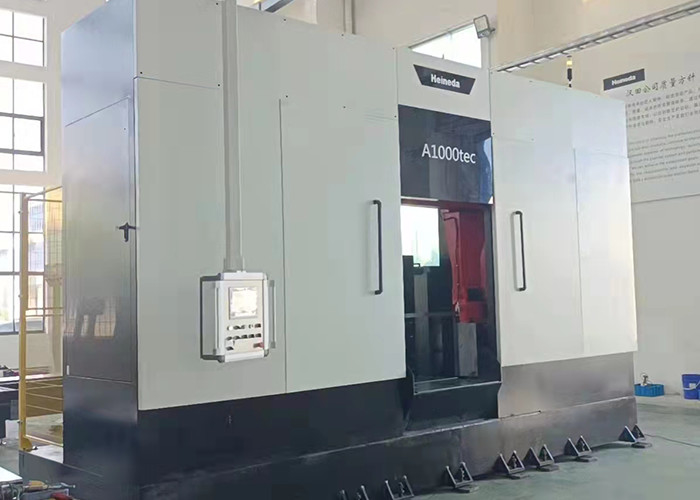

Fully Auto CNC Horizontal Band Saw Maximum Feeding Stroke 800mm A1000tec

A1000tec Fully Automatic Horizontal Band Saw Maximum Feeding Stroke 800mm

Description

The A1000tec is a fully automatic horizontal bandsaw machine. The equipment is mainly for sawing of aluminum, aluminum alloy, copper and other materials. The maximum width of sawing is 1000mm, the maximum height is 1000mm, and the maximum single feeding stroke is 800mm.
The equipment consists of main parts such as saw frame, column, bed, base, etc. It can complete functions such as automatic clamping, feeding, sizing, sawing, etc. It can adapt to the segmentation of materials within the specification range and the sawing of samples.

The composition of the equipment
The saw frame of the equipment is the core of the whole equipment, including the driving wheel group and the passive wheel group, the saw belt tension group, the clamping roller group, the saw belt turning group, and the aluminum scrap collection group. Among them, the active and passive wheel sets are designed, precisely processed, and meticulously debugged, so that the saw belt can run stably for a long time, providing a solid foundation for sawing. The permanent magnet synchronous AC motor used in the equipment not only guarantees enough output torque, but also adds a lot to the whole equipment with its high starting overload capacity and excellent energy efficiency level; the saw belt is automatically tensioned by an independent hydraulic tensioning mechanism , The stable hydraulic system and the cast tension mechanism ensure that the saw belt can maintain sufficient and stable tension under various sawing conditions. In addition, the tension system also monitors the tension of the saw belt at any time, monitors the sawing situation in real time and makes automatic feedback; the clamping roller group is the key structure in the sawing equipment, and its structure directly affects the operation stability of the entire equipment. This equipment adopts tungsten steel clamping mechanism, which completely gets rid of the problem that the clamping roller is not durable, and also provides strong protection for the operation of the saw belt, and provides the most direct support for the stability of sawing and the life of the saw belt; The 90° flip structure provides a theoretical basis for the horizontal band saw to cut up and down. The accurately calculated flip angle and flip distance are also one of the most important factors for the equipment’s sawing stability. The linear speed of the saw belt can be adjusted steplessly within the range of 500~2500m/min, which is also one of the key factors for the equipment to complete the sawing of various materials with the best sawing performance; the equipment is equipped with a dust collection mechanism and uses a horizontal saw The structure of the frame and the sawing characteristics of the band saw achieve high collection efficiency of aluminum scraps in the smallest working space, which provides great help for sawing and equipment use; A1000tec is equipped with a movable guide arm structure, allowing The large-size sawing mechanism can also show super sawing performance when sawing small-size materials; the column mechanism is the basic structure of the equipment for sawing. This equipment adopts a double-column double-drive structure, high-precision servo motor, high-precision reducer, high-precision ball screw and high-precision linear guide rail structure to complete the entire sawing process stably. The overall structure of the column mechanism directly affects the stability of the operation of the equipment, which is the basis for the stable operation of sawing; the equipment is equipped with a nitrogen balance system, which makes the entire complex and heavy equipment run smoothly and smoothly, reducing impact, reducing vibration, and improving operation stability. Improve the safety of equipment operation, increase the service life of the equipment, greatly improve the performance of the equipment, and improve the overall level of the equipment; the equipment also includes front guards, rear guardrails, automatic feeding systems, hydraulic systems, electrical automatic control systems, etc., Each part is inseparable from the overall function and is an integral part of the equipment, making the impossible possible and making the equipment a complete whole.

Product advantages
The permanent magnet synchronous AC motor used in the equipment not only guarantees sufficient output torque, but also adds a lot to the whole equipment with its high starting overload capacity and excellent energy efficiency level;
The linear speed of the saw belt can be adjusted steplessly within the range of 500~2500m/min, which is also one of the key factors for the equipment to complete the sawing of various materials with the best sawing performance; the equipment is equipped with a dust collection mechanism and uses a horizontal saw The structure of the frame and the sawing characteristics of the band saw achieve high collection efficiency of aluminum chips in the smallest working space, which provides great help for sawing and equipment use.
A1000tec is equipped with a movable guide arm structure, so that the large-sized sawing mechanism can also show super sawing performance when sawing small-sized materials.

FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
