Product Details:
Payment & Shipping Terms:
|
| Model: | VH0408 | Saw Belt Speed: | 200/2000m/min Stepless Adjustable |
|---|---|---|---|
| Motor: | 30kw | Chip Removal Method: | 15HP Pulsed Filter Core Collector |
| Maximum Sawing Capacity: | 400*800mm High(H)* Width(W) | Project Name: | VH0408 High Speed Vertical Band Saw |
| High Light: | Automatic Feeding CNC Vertical Band Saw,500mm vertical bandsaw for metal |
||

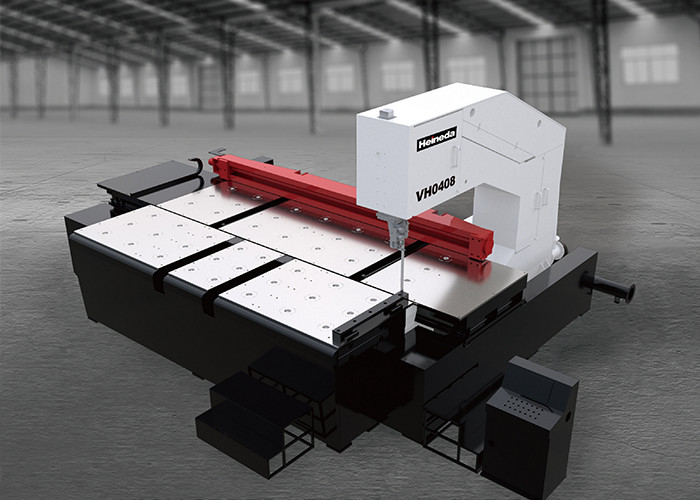

Sawing Of Aluminum Profiles With VH0408 High-Speed Vertical Band Saw
Parameters Table
| Project name | VH0408 High Speed Vertical Band Saw |
| Maximum sawing capacity | 400*800mm high(H)* width(W) |
| Motor | 30kw |
| Saw Belt Speed | 200/2000m/min stepless adjustable |
| Saw Band Size |
6940*34*1. 1*2—3T |
| Saw belt tensioning method | Independent hydraulic tensioning/relaxation |
| Feed Way | Hydraulic drive, speed infinitely adjustable |
| Automatic feeding | Automatic length setting, single feeding 500mm |
| Chip removal method | 15HP pulsed filter core collector |
Main features of the equipment
The structural parts including saw bow and base are all integrally processed by the processing center so as to ensure long—term and stable operation of the machine.
Hydraulic tensioning saw belt with break protection.
Tungsten steel clamping structure to ensure the normal operation of the saw belt.
Equipped with small material clamming device for positioning and clamping of partial profiles and small plates.
Fully automatic feeding ensures sawing accuracy and improves clamping efficiency.
Adopt quasi-dry micro—lubrication cooling system to ensure the normal operation of sawing.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
