Product Details:
Payment & Shipping Terms:
|
| Mechanical Dimensions: | 3420 X 2230 X 1770 Mm | Machine Weight: | 2430kgs |
|---|---|---|---|
| Packing Weight: | 3100kgs | Saw Blade Spindle Motor: | 10 HP |
| H X W: | 200 X200mm, 175 X210mm, 130 X350mm, 20x400mm Depends On The Size Of The Saw Blade | Application: | For Sawing Of Profiles And Pipes |
| Warranty: | 1 Year | Place Of Origin: | China |
| Highlight: | 200mm Aluminum Profile Cutting Saw,200mm aluminium extrusion saw,Servo Drive Aluminum Profile Cutting Saw |
||

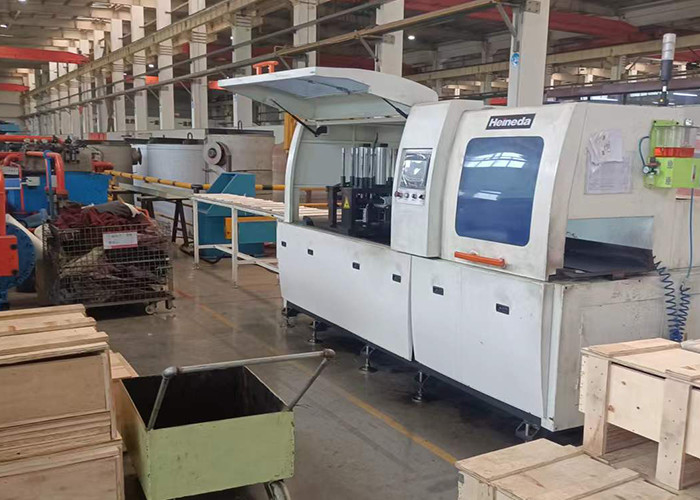

HX-4020 Aluminum Profile Sawing Machine Adopts Servo Drive System
Description
Application:
Model: HX-4020-E (Automatic aluminum type material sawing machine)
▲ HX represents the model of Heineda Company's automatic aluminum plate sawing machine.
▲ 4020 represents the size of the cutting aluminum profile size, 4020 sawing ability: width 400mm, thickness 200mm.
Technical specifications and parameters
| Model | HX-4020 |
| Servo drive system | Servo motor + ball screw |
| H x W | 200 x200mm, 175 x210mm, 130 x350mm, 20x400mm depends on the size of the saw blade |
| Automatic feeding stroke | 1300mm can be reversed feed |
| Automatic feeding accuracy | ±0.1mm |
| Saw blade spindle speed | 1500-3500R.P.M. stepless speed change (can be set according to the actual saw blade size) |
| Saw blade spindle motor | 10 HP |
| Servo feed motor | 1.0 KW |
| Servo feeding motor | 2.0kw |
| Touch screen | 1O" |
| Saw blade size | 12", 14", 16", 18", 20", 22", 24" (1" aperture) |
| Air pressure | 4-6kgs / cm² |
| Mechanical Dimensions | 3420 x 2230 x 1770 mm |
| Packing size | 3750 x 2380 x 2170 mm |
| Machine weight | 2430kgs |
| Packing weight | 3100kgs |
Product display
Our company
We have been focusing on the innovation and research of computer beam saws, CNC drilling machines, edge banding machines, CNC routers, as well as machine assembly and software integration, providing a full range of CNC furniture equipment and automated production solutions. With good technological innovation, good production management and high-quality service, the products are exported to many countries. In the future, we will continue to focus on the research and development and manufacture of panel furniture machinery, and welcome more friends to know us and become partners to create a better future.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
