A-400tec Horizontal Sawing Line Automatic Turning Over Adjustable Speed

A-400tec Horizontal Sawing Line Automatic Turning Over Adjustable Speed
A-400tec Horizontal Sawing Line Automatic Turning Over Adjustable Speed
video play

Large Image :  A-400tec Horizontal Sawing Line Automatic Turning Over Adjustable Speed

Product Details:
Place of Origin: China
Brand Name: HEINEDA
Model Number: A-600tec/A-400tec
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 6-8 workdays
Supply Ability: 10 sets per month
Detailed Product Description
Advantage: Automatic Turning Over Maximum Sawing Ability: 400mm*400mm/600mm*6000mm
Chip Removal Way: 15HP Pulsed Filter Core Collector Automatic Feeding: Automatic Cut To Length, 300mm- 500mm
Motor: 37KW/45KW Feed Way: Servo Ball Screw Drive, Speed Infinitely Adjustable
Highlight:

A-400tec Sawing Line

,

Automatic Turning Over Sawing Line

,

A-400tec horizontal sawing machine

Automatic High-Speed Horizontal Sawing Production Line Automatic Turning Over

Sawing production line characteristics
1.the degree of automation is high

  • The equipment is equipped with a fully automatic sawing process, and the entire device can be easily operated.

2.full function

  • The equipment is equipped with a storage mechanism, an automatic tape, automatic scale, automatic sawing, automatic tip, automatic marking, automatic palletizing, and other functions, to a large extent, a variety of aluminum rods automation saw. The device can complete the automatic sawing of the diameter φ90 ~ φ400mm aluminum rod, which is suitable for sawing of each series of aluminum rods.

3. safe and reliable

  • Equipment is equipped with balancing systems, which can be subjected to long-term repetitive operation and start and stop repeatedly. The saw frame is long-term suspended without worrying to fall off.
  •  The equipment has a certain safety monitoring function to a large extent to avoid accidents caused by personally incorrect or false operation.
  • The equipment host has a full-wrapped shroud and protects the safety of the operator while reducing noise.
  •  sports parts shroud, safety fence, maximum safeguards safe.

4. High performance

  • The equipment is tight, the rhythm is fast. The more a large diameter aluminum rod, the more performance can be embodied.
  • the saw suture, the maximum saw is shown in 2mm. Each sawing aluminum is much lower than the disc sawing and most belt saw.
  • the tape life is high, the sawing cost is low.


Technical specifications and parameters

characteristic

parameter / Model

A-400tecA-600tec
Maximum sawing ability

400mm*400mm



600mm*6000mm





Motor

37kw45kw



Saw Belt Speed

200-2000m/minStepless Adjustable



Saw Belt Tensioning Method



Independent Hydraulic Tensioning/Relaxation



Feed Way



Servo ball screw drive, speed infinitely adjustable



Automatic feeding



Automatic cut to length, 300mm- 500mm



Chip Removal Way



15HP Pulsed filter core collector


Product Usage
The equipment is mainly used for sawing and processing of aluminum alloy sheets, and the equipment has high reliability, high sawing efficiency, low operating cost, complete safety protection, and sufficient static, dynamic rigidity. And use the current most advanced technology to ensure that the system has good dynamic quality. Machine tools, simple operation and maintenance, beautiful modeling, excellent after-sales service.

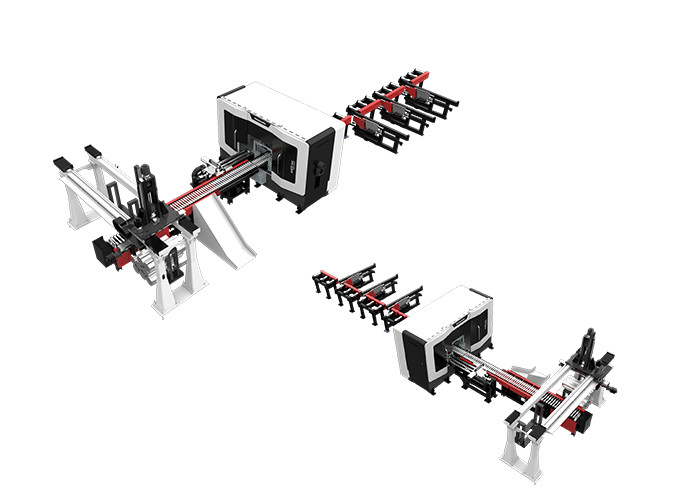

Product display
A-400tec Horizontal Sawing Line Automatic Turning Over Adjustable Speed 0

FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.

Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.

If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
