| Total Power: | 14kw | Total Weight: | 6T |
|---|---|---|---|
| Saw Strip Specification: | 6830x41x1.3mm | Brand: | Heineda |
| Model: | H5 | Service: | Service Machinery Overseas |
| Highlight: | 500mm High Speed Band Saw Machine,High Speed Band Saw Machine 14kw |
||

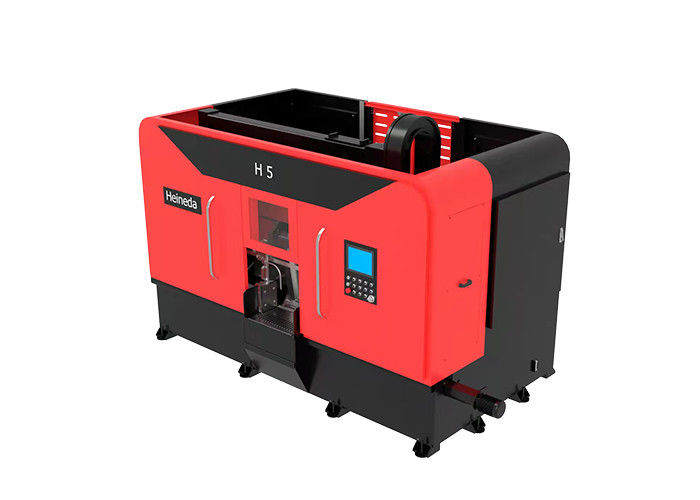

H5 CNC High-Speed Precision Band Saw With Automatic Chip Removal
Product Description
The band saw is a CNC endless band saw machine. The saw blade is tensioned on two rotating saw wheels that move continuously in one direction to cut through the metal. Mainly used for material preparation in metal processing workshops and metalworking workshops.
Classification of a sawer:
According to the layout of the saw wheel, it is divided into two types:
The vertical zone saw and a horizontal zone saw. The vertical zone saw is divided into left and right.
Advantage:
The CNC band saw has thin saw blade, narrow sawing path, and small loss to metal;
Because it is a document, the log can be selectively sawed, thereby improving the quality of talent
The saw blade of the CNC band saw moves continuously in one direction, making it easy to increase the cutting speed.
Technical specifications and parameters
| Model | H5 band saw machine |
| Brand | Heineda |
| Code | 0012 |
| Saw length (mm) | Pass |
| Sawing width (mm) | 500 |
| Saw height (mm) | 400 |
| Saw strip specification (mm) | 6830x41x1.3 |
| Total power (kW) | 14 |
| Total weight (T) | 6 |
Features
1. Single automatic fixed ruler ≥ 450mm, which can achieve automatic multiple cycle fixed ruler
2. Fully automatic ruler and semi -dynamic fixed ruler dual mode can be convertible
3. The automatic feed uses the servo ruler positioning, precise, fast, and reliable.
4. The mechanical structure is a heavy structural design to ensure the precise and stable operation of the machine
5. The saw rail running rail adopts a precision pre -pressure line -up guide rail, which is precise and stable.
6. The header of the machine adopts a servo motor+roller screw form to assist the nitrogen balance system.
7. The sawbone drive end adopts a large -torque umbrella gear deceleration motor system
8. Automatic crumb function
9. Use a saw with hydraulic tension function and guided section hydraulic clamping function.
10. Automatic dandruff steel brush mechanism can achieve transmission adjustment.
11. Saw belt -oriented shocking function, maximize extension of the use of the use of the sawbring and sawing accuracy
12. Ultra -short tail material design, the shortest tail material ≤30mm
13. Use HeineDa to independently develop patented PLC control and operating system
14. Expansion and optional function: Saw belt pressure monitoring function, sawband partial oblique monitoring function, sawing belt life reminder function, and saw cutting output statistical function.
Product display
Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.
Packaging Details
Foam inside ,plastic film outside ,metalen box is optional.
| Quantity(sets) | 1 - 1 | 2-5 | >5 |
| Est. Time(days) | 15 | 30 | To be negotiated |
