Product Details:
Payment & Shipping Terms:
|
| Use: | Sawing Processing Of Aluminum Alloy Sheet | Main Saw Motor: | 30KW |
|---|---|---|---|
| Machine Size (length×width×height): | 8000mmx7035mmx2430mm | Voltage: | 380V/50Hz |
| Use Air Pressure: | ≥5.0 Kg/cm2 | Cutting Width: | 4000mm |
| Main Saw Speed: | 2800-3500 R/min | Main Saw Shaft Core Diameter: | Ø 38mm |
| Blade Diameter: | 6-20 Inches | Blade Speed: | 0-3000 RPM |
| Blade Tilt: | 0-45 Degrees | Control System: | PLC/CNC |
| Cooling System: | Air/Water | Cutting Angle: | 0-45 Degrees |
| Cutting Capacity: | 0-3 Inches | Dimensions: | 1000x1000x1000 Mm |
| Feeding Speed: | 0-100 M/min | Motor Power: | 1-3 HP |
| Positioning Accuracy: | 0.01mm | Power Supply: | 220V/380V |
| Repeatability: | 0.02mm | Type: | CNC Circular Saw |
| Weight: | 500-1000 Kg | ||
| Highlight: | Alu Plate CNC Circular Saw,CNC Circular Sawing Machine,Aluminum Plate Circular Sawing Machine |
||
Heineda HL-12 CNC Aluminum Plate Circular Sawing Machine
Aluminum Plate Circular Sawing Machine Sawing Process Of Aluminum Alloy Sheet
Description
Model: HL-12CNC automatic high-speed precision aluminum plate circular saw machine
▲ HL represents the model of Aluminum plate sawing machine in Heineda.
▲ 12 represents the size of the aluminum plate sawing machine, 12 can be sawd in width of 4000 mm.
▲ CNC represents this aluminum plate saw cutting machine for numerical control automatic model.
Technical specifications and parameters
| Model | HL-12CNC | |
| Sawing capacity | Cutting length | 4000mm |
| Cutting width | 4000mm | |
| Maximum cutting height | 200mm | |
| Maximum exposed height of saw blade | 205mm | |
| Main saw blade | Main saw motor | 30KW |
| Main saw diameter | Ø700mm | |
| Main saw shaft core diameter | Ø 38mm | |
| Main saw speed | 2800-3500 r/min | |
| Saw seat | Walking frequency conversion motor | 2.0KW |
| Forward speed | The fastest 10m/min | |
| Backward speed | Up to 25 m/min | |
| Automatic feeding motor | AC 3KW | |
| Maximum opening height of gripper | 210mm | |
| Use air pressure | ≥5.0 kg/cm2 | |
| Height of workbench from ground | 950 mm | |
| Machine size (length×width×height) | 8000mmx7035mmx2430mm | |
| Voltage | 380V/50Hz |
Product Usage
The equipment is mainly used for sawing and processing of aluminum alloy sheets, and the equipment has high reliability, high sawing efficiency, low operating cost, complete safety protection, and sufficient static, dynamic rigidity. And use the current most advanced technology to ensure that the system has good dynamic quality. Machine tools, simple operation and maintenance, beautiful modeling, excellent after-sales service.
Company Profile
Known as the precise sawing machine plan supplier, Heineda has develûped from traditional equipment, semi-autocontrol machinery to automatic digital control machinery and is possessed of above 100 types of self- -researched anddeveloped equipment. In the manufacturing of precise sawing machinery of aluminum, Heineda products have wonrecognition from a batch of aviation, military and civil equipment manufacturers in China mainland market.
Heineda depends on the research and development center in Xinbei City, Taiwan, makes insight into the marketdemands and advanced technologies at any time and makes constant improvement in the production process andapplication technologies; adopts the enterprise concept of "sustainable innovation, everlasting business" and objec-tive of 100% client satisfaction and promotes the development of China manufacturing industry.

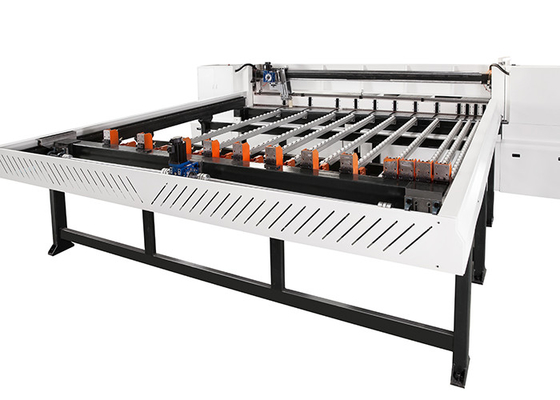

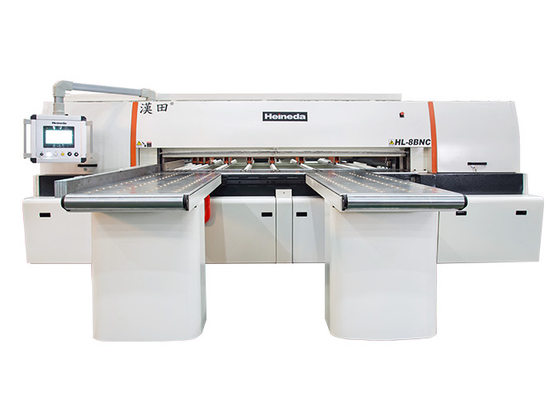

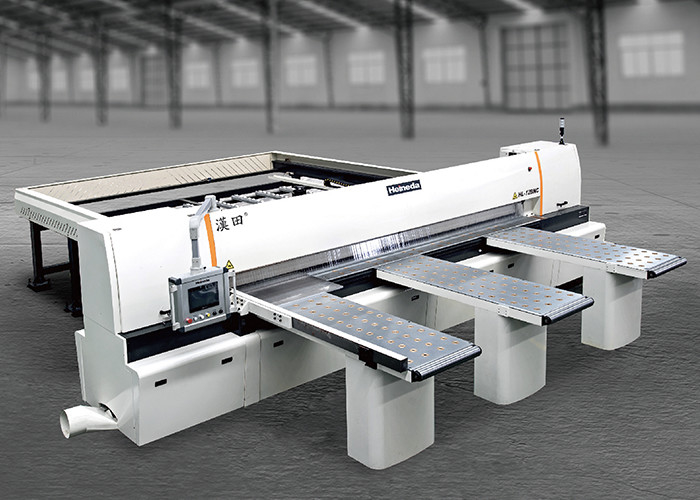

Product display
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
