Product Details:
Payment & Shipping Terms:
|
| Model: | HX-4020 | Servo Feed Motor: | 1.0 KW |
|---|---|---|---|
| Saw Blade Size: | 12", 14", 16", 18", 20", 22", 24" (1" Aperture) | Mechanical Dimensions: | 3420 X 2230 X 1770 Mm |
| Packing Weight: | 3100kgs | Hydraulic Feed Horsepower: | 0.75kw 1HP |
| Blade Length: | Variable | Blade Type: | Carbide |
| Control System: | Computerized | Cutting Accuracy: | High |
| Cutting Angle: | Adjustable | Cutting Capacity: | Large |
| Cutting Speed: | High | Motor Power: | High |
| Noise Level: | Low | Operation Mode: | Automatic |
| Product Name: | CNC Metal Saw | Safety Protection: | Yes |
| Voltage: | 220V | Warranty: | 1 Year |
| Weight: | Heavy | ||
| Highlight: | Aluminum Material Automatic Sawing Machine,0.75kw 1HP Aluminum Sawing Machine,Aluminum Type Material Sewing Machine |
||
HX-4020-E Automatic Aluminum Type Material Sawing Machine
HX - 4020 - E Automatic Aluminum Type Material Sawing Machine
Description
The band saw is mainly composed of a saw frame, a saw wheel, a transmission part, a saw belt guide wheel group, a waste conveyor, a hydraulic system, and an electric control system.
Technical specifications and parameters
| Model | HX-4020 |
| Servo drive system | Servo motor + ball screw |
| Hydraulic feed horsepower | 0.75kw 1HP |
| H x W | 200 x200mm, 175 x210mm, 130 x350mm, 200x400mm depends on the size of the saw blade |
| Saw Blade Spindle Motor | 7.5kw 10HP Optional pump modules |
| Automatic feeding stroke | 1300mm can be reversed feed |
| Automatic feeding accuracy | ±0.1mm |
| Saw blade spindle speed | 1500-3500R.P.M. stepless speed change (can be set according to the actual saw blade size) |
| Saw blade spindle motor | 10 HP |
| Servo feed motor | 1.0 KW |

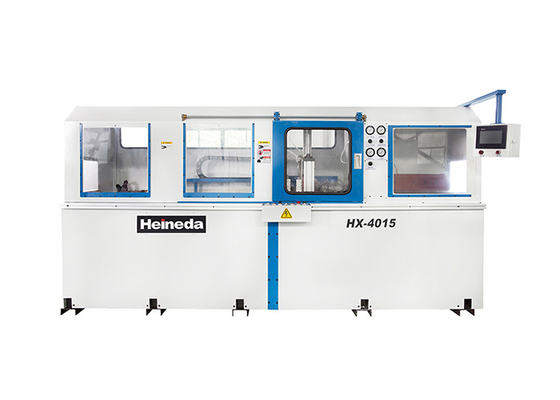

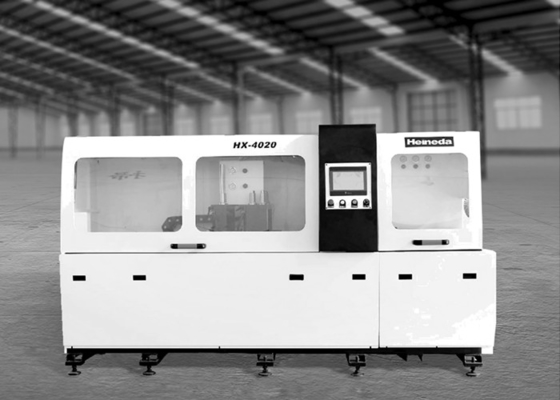

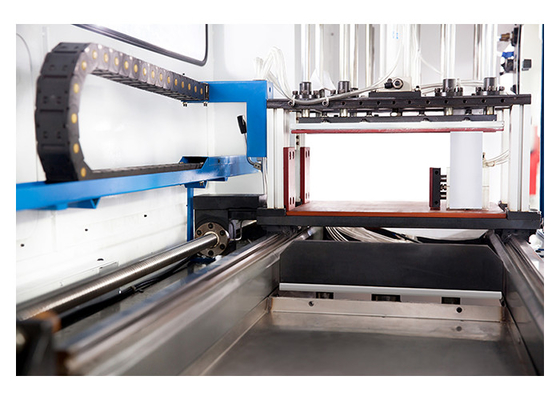

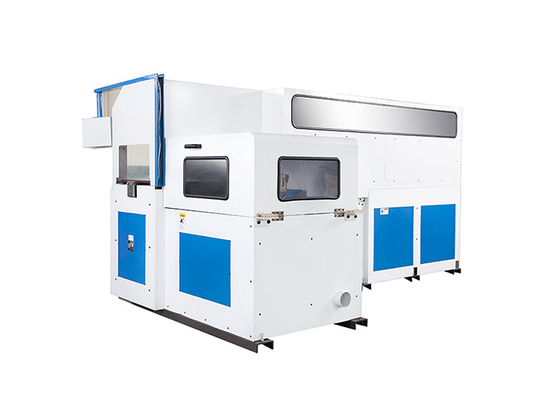

Product display
Advantage
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
