A550NC Automatic Horizontal Band Saw Machine Maximum Width 550mm

A550NC Automatic Horizontal Band Saw Machine Maximum Width 550mm
A550NC Automatic Horizontal Band Saw Machine Maximum Width 550mm
video play

Large Image :  A550NC Automatic Horizontal Band Saw Machine Maximum Width 550mm

Product Details:
Place of Origin: China
Brand Name: HEINEDA
Model Number: A330NC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 6-8 workdays
Supply Ability: 10 sets per month
Detailed Product Description
Place Of Origin: China Model: CNC Horizontal Band Saw
Maximum Cutting Width: 550mm Maximum Height: 550mm
Single Maximum Feeding Stroke: 600mm Name: Horizontal Band Saw
Blade Guide: Roller Bearing Blade Size: 27 X 0.9 X 4115mm
Blade Speed: 20-90m/min Blade Tension: Manual
Coolant System: Yes Cutting Capacity: 400mm
Dimensions: 2300 X 1250 X 1750mm Hydraulic Vise: Yes
Motor Power: 3.7Kw Net Weight: 1400Kg
Saw Blade Feeding: Hydraulic Table Height: 800mm
Table Tilt: 45° Left & Right Voltage: 380V/50Hz
Highlight:

Width 550mm CNC Horizontal Band Saw

,

CNC Automatic Horizontal Band Saw Machine

,

Width 550mm Automatic Horizontal Band Saw Machine

A550NC Automatic Horizontal Band Saw Machine - Maximum Width 550mm



A550NC Automatic Horizontal Band Saw Machine Sawing Maximum Width 550mm



Description

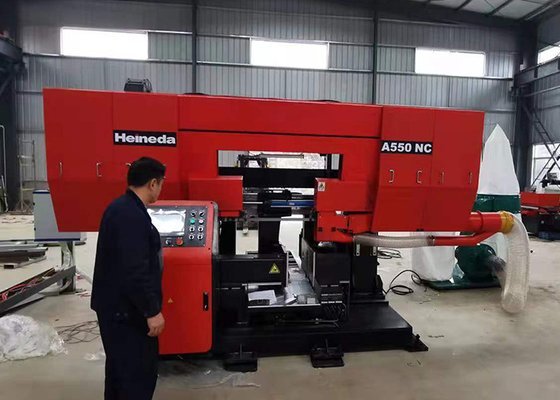

The A550NC is a small diameter fully automatic horizontal band saw. The maximum sawing width is 550mm, the maximum height is 550mm, and the maximum single feeding stroke is 600mm.



The equipment consists of main parts such as saw frame, column, bed, base, etc. It can complete functions such as automatic clamping, feeding, sizing, sawing, etc., and can adapt to the segmentation of materials within the specification range and the sawing of samples.



The saw frame of the equipment is the core of the whole equipment, including the driving wheel group and the passive wheel group, the saw belt tension group, the clamping roller group, the saw belt turning group, and the aluminum scrap collection group. Among them, the active and passive wheel sets are designed, precisely machined, and meticulously debugged, so that the saw belt can run stably for a long time, providing a solid foundation for sawing.



The overall structure of the column mechanism directly affects the stability of the operation of the equipment, which is the basis for the stable operation of sawing; the equipment is equipped with a nitrogen balance system, so that the entire complex and heavy equipment can run smoothly and smoothly, reducing impact, reducing vibration, and improving operation stability. Improve the safety of equipment operation, increase the service life of the equipment, greatly improve the performance of the equipment, and improve the overall level of the equipment.



Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.



FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.



Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.



If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
