HL-12CNC Automatic High-Speed Precision Aluminum Plate Circular Saw Machine

China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Jerry

I'm Online Chat Now

HL-12CNC Automatic High-Speed Precision Aluminum Plate Circular Saw Machine

HL-12CNC Automatic High-Speed Precision Aluminum Plate Circular Saw Machine
HL-12CNC Automatic High-Speed Precision Aluminum Plate Circular Saw Machine
video play

Large Image :  HL-12CNC Automatic High-Speed Precision Aluminum Plate Circular Saw Machine

Product Details:
Place of Origin: China
Brand Name: HEINEDA
Model Number: HL-12CNC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 6-8 workdays
Supply Ability: 10 sets per month
Detailed Product Description
Cutting Length: 4000mm Main Saw Motor: 30KW
Machine Size (length×width×height): 8000mmx7035mmx2430mm Voltage: 380V/50Hz
Use Air Pressure: ≥5.0 Kg/cm2 Cutting Width: 4000mm
Main Saw Speed: 2800-3500 R/min Main Saw Shaft Core Diameter: Ø 38mm
Highlight:

High Speed Circular Saw Machine

HL-12CNC Automatic High-Speed Precision Aluminum Plate Circular Saw Machine



Description

Model: HL-12CNC automatic high-speed precision aluminum plate circular saw machine

▲ HL represents the model of Aluminum plate sawing machine in Heineda.

▲ 12 represents the size of the aluminum plate sawing machine, 12 can be sawd in width of 4000 mm.

▲ CNC represents this aluminum plate saw cutting machine for numerical control automatic model.



Technical specifications and parameters

Model HL-12CNC

Sawing capacity Cutting length 4000mm
  Cutting width 4000mm
  Maximum cutting height 200mm
  Maximum exposed height of saw blade 205mm

Main saw blade Main saw motor 30KW
  Main saw diameter Ø700mm
  Main saw shaft core diameter Ø 38mm
  Main saw speed 2800-3500 r/min
Saw seat Walking frequency conversion motor 2.0KW
  Forward speed The fastest 10m/min
  Backward speed Up to 25 m/min
  Automatic feeding motor AC 3KW
  Maximum opening height of gripper 210mm
  Use air pressure ≥5.0 kg/cm2
  Height of workbench from ground 950 mm
  Machine size (length×width×height) 8000mmx7035mmx2430mm
  Voltage 380V/50Hz



Product Usage

The equipment is mainly used for sawing and processing of aluminum alloy sheets, and the equipment has high reliability, high sawing efficiency, low operating cost, complete safety protection, and sufficient static, dynamic rigidity. And use the current most advanced technology to ensure that the system has good dynamic quality. Machine tools, simple operation and maintenance, beautiful modeling, excellent after-sales service.

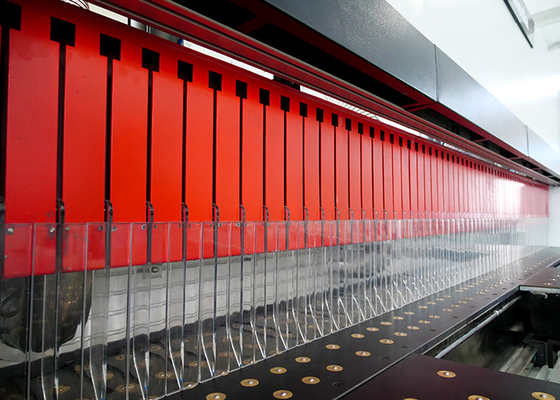

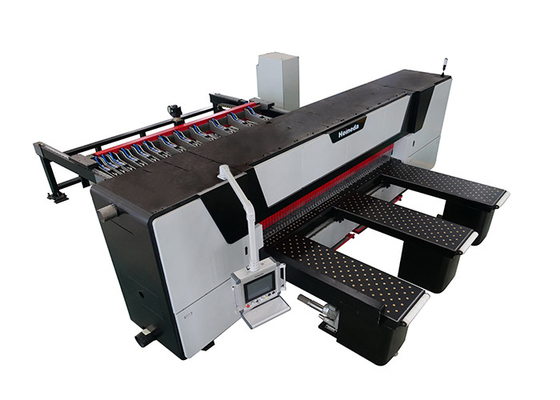

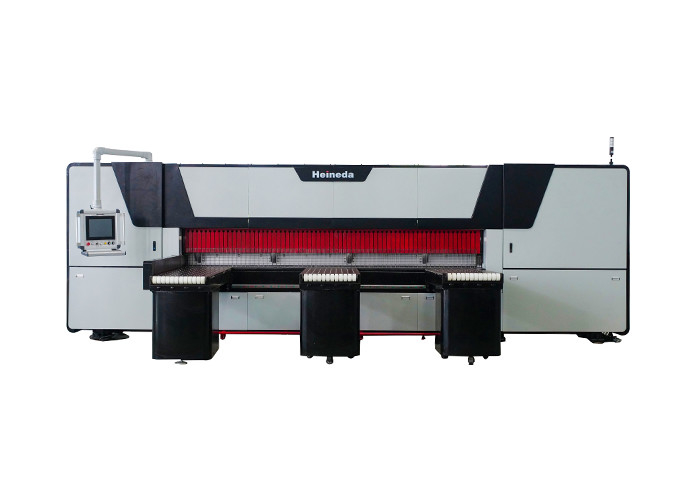

Product display

HL-12CNC Automatic High-Speed Precision Aluminum Plate Circular Saw Machine 0



FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.



Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.



If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
