High Performance Precision CNC Panel Saw Machine 2600mm Sawing Width H-2610L

China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Jerry

I'm Online Chat Now

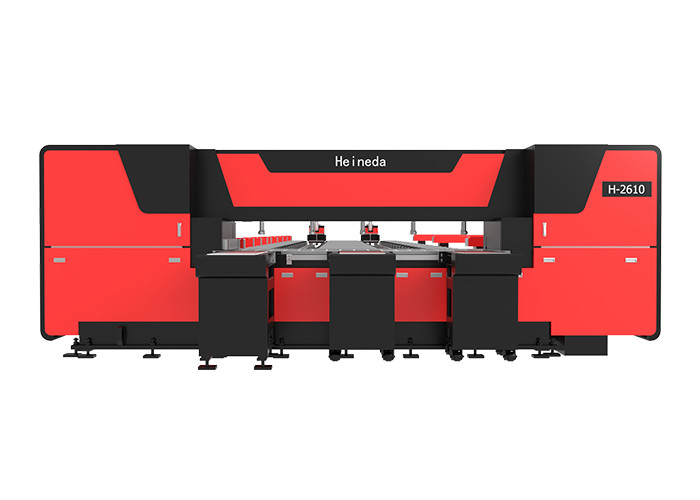

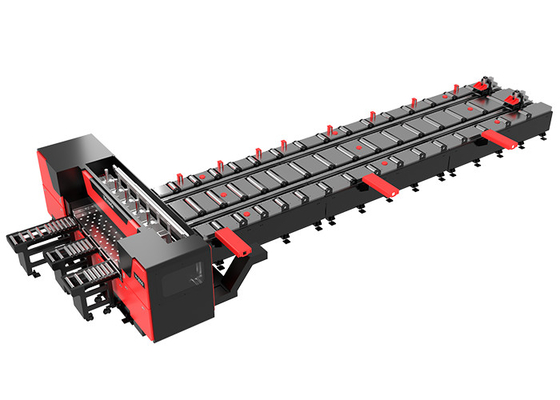

High Performance Precision CNC Panel Saw Machine 2600mm Sawing Width H-2610L

High Performance Precision CNC Panel Saw Machine 2600mm Sawing Width H-2610L
High Performance Precision CNC Panel Saw Machine 2600mm Sawing Width H-2610L High Performance Precision CNC Panel Saw Machine 2600mm Sawing Width H-2610L

Large Image :  High Performance Precision CNC Panel Saw Machine 2600mm Sawing Width H-2610L

Product Details:
Place of Origin: China
Brand Name: HEINEDA
Model Number: H-2610L
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 6-8 workdays
Supply Ability: 5 sets per month
Detailed Product Description
Sawing Width: 2600mm Saw Height: 100mm
Total Power: 36kw Total Weight: 28T
Saw Strip Specification: Φ460 Code: 0012
Highlight:

CNC Panel Saw 2600mm

,

High Performance CNC Panel Saw

,

precision panel saw machine 2600mm

H-2610L CNC Precision Plate Sawing And Milling Machine Maximum Stroke ≥12m



Technical specifications and parameters

Model

H-2610L CNC

Brand Heineda
Code 0012
Saw length (mm) Maximum 12000
Sawing width (mm) 2600
Saw height (mm) 100
Saw strip specification (mm) Φ460
Total power (kW) 36
Total weight (T) 28



Six advantages of product stability guarantee
1. Product Design
2. Team R&D
3. Manufacturing
4. Performance test
5. Factory self-inspection
6. After-sales service



Company Profile
Known as the precise sawing machine plan supplier, Heineda has develûped from traditional equipment, semi-autocontrol machinery to automatic digital control machinery and is possessed of above 100 types of self- -researched anddeveloped equipment. In the manufacturing of precise sawing machinery of aluminum, Heineda products have wonrecognition from a batch of aviation, military and civil equipment manufacturers in China mainland market.

Heineda depends on the research and development center in Xinbei City, Taiwan, makes insight into the marketdemands and advanced technologies at any time and makes constant improvement in the production process andapplication technologies; adopts the enterprise concept of "sustainable innovation, everlasting business" and objec-tive of 100% client satisfaction and promotes the development of China manufacturing industry.



Features

1. Hydraulic hand-scratch automatic fixed mechanism, maximum itinerary ≥12m
2. Fully automatic fixed and semi-automatic fixed-scale double mode convertible operation
3. Automatic feeding uses servo ruler to position, precise, fast, and reliable.
4. Mechanical framework is heavy-duty structural design to ensure precision stabilization of machines
5. The head operation guide is used to cast a hard rail with a grinding hardening surface, and is completed with the overall casting of the base.
6. Machine head feed Using servo motor + ball rod form
7. Have an automatic chopple
8. Use Heineda to develop patented PLC control and operating system.



Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.



FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.



Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.



If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
