| Features: | High Precision Sawing | Crop Width: | 2600mm |
|---|---|---|---|
| Servo Fixtler Motor: | 0.75kw | Workbench Height: | 1130 Mm |
| Hertz: | 50Hz | Fixed Length: | 1500mm |
| Voltage: | 380V | Model: | HL-8B |
| Highlight: | 380Volt Composite Panel Saw,Composite Panel Saw 15kw,15kw Cnc Saw Cutting Machine |
||

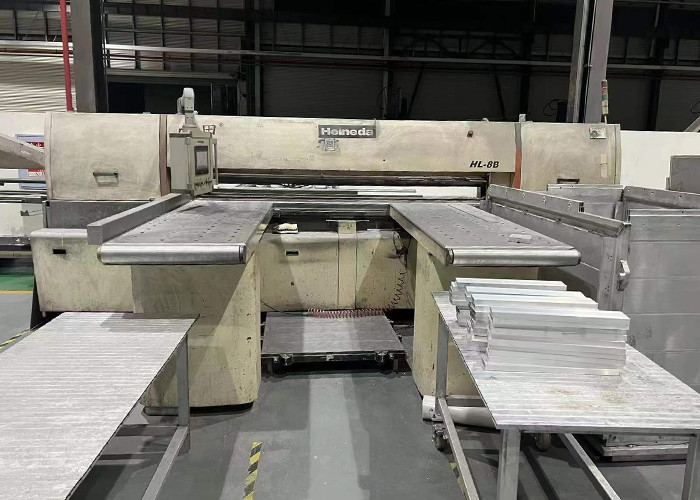

HL-8B Composite Panel Saw Machine Plastic Panel Cutting Machine
Description
Features:
The feeding power is propelled by oil and gas mixing/hydraulic cylinder, which is more stable and high-precision sawing, ensuring that the sawing surface is smooth and free of burrs;
Suitable for long material cutting, convenient and fast;
Equipped with a minimum quantity lubrication device and special cutting oil for aluminum alloy, the service life of the saw blade can be improved and the phenomenon of electric leakage and electric shock can be avoided;
Optional automatic digital display fixed-length, cutting size accuracy is stable;
Model: HL-8B semi-automated aluminum saw cutting machine
▲ HL represents the model of Heineda company semi-automated aluminum plate sawing machine.
▲ 8 represents the size of the aluminum plate sawing machine, 8b can be sawed 2600 mm.
This apparatus can be applied to the sawing of aluminum plates, copper plates, composite panels, plastic plates.
Technical specifications and parameters
| Model | HL-8B | |
| efficacy | Crop width | 2600mm |
| Maximum cutting height | 120mm | |
| Maximum saw blade exposed height | 180mm | |
| Main saw motor | 15kw | |
| Strip | Strip diameter | Ø460mm |
| Main saw shaft diameter | Ø 38mm | |
| Spindle speed | Max: 3950 r.p.m. | |
| Sawing | Walking inverter motor | 1.5kw |
| Automatic scale (optional) | Servo fixtler motor | 0.75kw |
| Fixed length | 1500mm | |
| Air pressure | ≥5.0 kg / cm2 | |
| Workbench height | 1130 mm | |
| Machine tool shape (length × width × height) | 5300mm × 5890mm × 1970mm | |
| Voltage | 380V | |
| hertz | 50Hz | |
| Main machine | Machine weight | About 7000kg |
The above specifications are not notified if there is any change
Equipment execution standard
Metal cutting general technical conditions: GB / T 9061-2006
General technical conditions for metal cutting welding: JB / T 9873-1999
General technical conditions for metal cutting hydraulic system: JB / T10051-1999
Industrial machinery and electrical equipment, the first part of general technical conditions: GB / T5226.1
Machine safety protection: GB 16454
Electrical system: GB 5226.1
All components of the equipment and various metering units are all units (SI) units; the main components of the equipment include robustness, electrical and electronic devices to prevent errors or accidental accidents
Device processing accuracy:
Processing accuracy: non-flat ± 0.3mm / m, inclination ± 0.5 mm / m, roughness ≤ Ra32.
Feed length accuracy: ± 0.5mm / m.
Equipment security performance
| Three-color light | Standardization |
| Voltage requirements | AC380V ± 5% |
| Machine tool insulation | Test with insulation, meet 5MΩ or more |
| Elevation requirements | Working altitude is generally less than 1km |
| working environment | The ambient temperature must not exceed 0 ~ 40 ° C, the relative humidity is 95% or less (unrupt) |
| Electrical protection level | Standard IP54 |
The main unit and name of the machine
The main unit name of the HL-8B semi-automatic aluminum plate sawing machine.
Packaging, transportation
1. The packaging of the equipment should meet long-distance transportation, multiple handling and storage requirements. The packaging should be robust, reliable, anti-corrosion, moisture, anti-theft.
2. Easy to lose, special spreaders, professional tools, etc., to be individually packaged and indicate the character's name and easy-to-off.
3. Due to the loss, defect, mold, rust, moisture and defects such as the seller package and transportation, the seller is responsible for repair, supplementing or replacing.
4. The transportation fee seller is provided.
Company Profile
Known as the precise sawing machine plan supplier, Heineda has develûped from traditional equipment, semi-autocontrol machinery to automatic digital control machinery and is possessed of above 100 types of self- -researched anddeveloped equipment. In the manufacturing of precise sawing machinery of aluminum, Heineda products have wonrecognition from a batch of aviation, military and civil equipment manufacturers in China mainland market.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
