Product Details:
Payment & Shipping Terms:
|
| Model: | HL - 8B | Crop Width: | 2600mm |
|---|---|---|---|
| Maximum Saw Blade Exposed Height: | 180mm | Servo Fixtler Motor: | 0.75kw |
| Workbench Height: | 1130 Mm | Hertz: | 50Hz |
| Highlight: | 180mm Aluminum Plate Saw,180mm Cnc Sawing Machine |
||

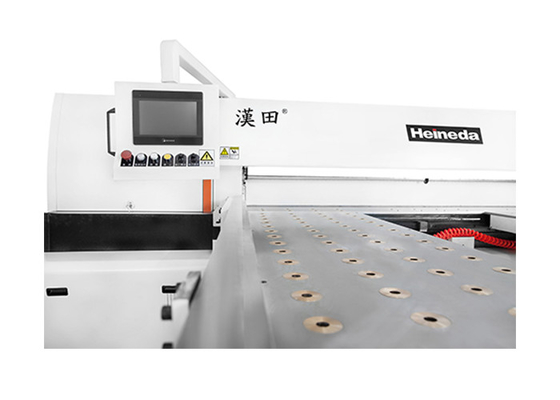

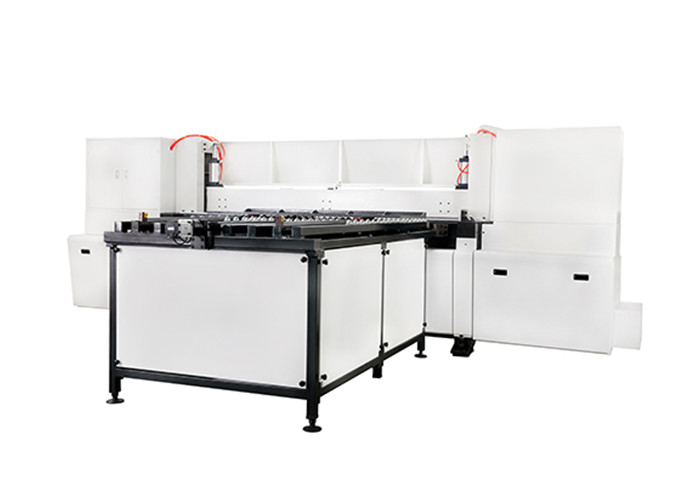

HL - 8B Semi - Automatic Aluminum Plate Sawing Machine For Aluminum Plate , Copper Plate
Description
Model: HL-8B semi-automated aluminum saw cutting machine
▲ HL represents the model of Heineda company semi-automated aluminum plate sawing machine.
▲ 8 represents the size of the aluminum plate sawing machine, 8b can be sawed 2600 mm.
This apparatus can be applied to the sawing of aluminum plates, copper plates, composite panels, plastic plates.
Technical specifications and parameters
| Model | HL-8B | |
| efficacy | Crop width | 2600mm |
| Maximum cutting height | 120mm | |
| Maximum saw blade exposed height | 180mm | |
| Main saw motor | 15kw | |
| Strip | Strip diameter | Ø460mm |
| Main saw shaft diameter | Ø 38mm | |
| Spindle speed | Max: 3950 r.p.m. | |
| Sawing | Walking inverter motor | 1.5kw |
| Automatic scale (optional) | Servo fixtler motor | 0.75kw |
| Fixed length | 1500mm | |
| Air pressure | ≥5.0 kg / cm2 | |
| Workbench height | 1130 mm | |
| Machine tool shape (length × width × height) | 5300mm × 5890mm × 1970mm | |
| Voltage | 380V | |
| hertz | 50Hz | |
| Main machine | Machine weight | About 7000kg |
The above specifications are not notified if there is any change
The main unit and name of the machine
The main unit name of the HL-8B semi-automatic aluminum plate sawing machine.
Packaging, transportation
1. The packaging of the equipment should meet long-distance transportation, multiple handling and storage requirements. The packaging should be robust, reliable, anti-corrosion, moisture, anti-theft.
2. Easy to lose, special spreaders, professional tools, etc., to be individually packaged and indicate the character's name and easy-to-off.
3. Due to the loss, defect, mold, rust, moisture and defects such as the seller package and transportation, the seller is responsible for repair, supplementing or replacing.
4. The transportation fee seller is provided.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
