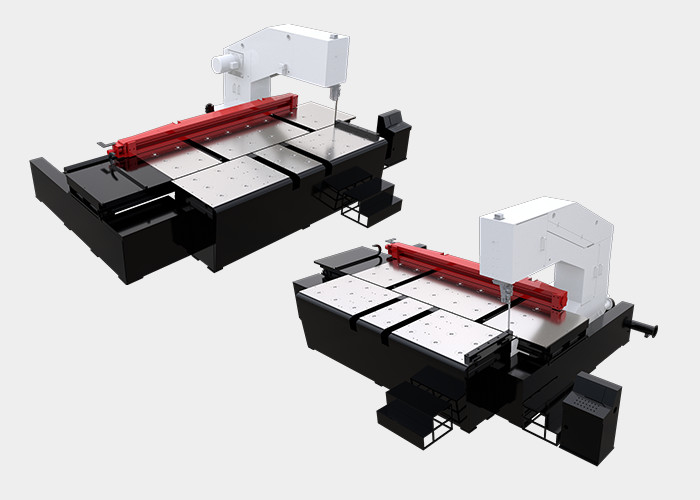

Highly Automated CNC Vertical Band Saw Machine For Material Sawing VH0615-30

China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
China Jiangsu Heineda Machinery Industrial Co.,Ltd certification
The delivery time is quick, and very important: the products always sent match the order. I trust them because i've never been disapointed with them.

—— Jerry

I'm Online Chat Now

Highly Automated CNC Vertical Band Saw Machine For Material Sawing VH0615-30

Highly Automated CNC Vertical Band Saw Machine For Material Sawing VH0615-30
Highly Automated CNC Vertical Band Saw Machine For Material Sawing VH0615-30
video play

Large Image :  Highly Automated CNC Vertical Band Saw Machine For Material Sawing VH0615-30

Product Details:
Place of Origin: China
Brand Name: HEINEDA
Model Number: VH0615
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Package
Delivery Time: 6-8 workdays
Supply Ability: 10 sets per month
Detailed Product Description
Project Name: VH0615 High Speed Vertical Band Saw Saw Band Size: 11200*41*1—3T
Saw Belt Tensioning Method: Independent Hydraulic Tensioning/relaxation Place Of Origin: China
Automatic Feeding: Automatic Length Setting, Single Feeding 500mm Feed Way: Hydraulic Drive, Speed Infinitely Adjustable
Highlight:

Automated CNC Vertical Band Saw

,

Automated Vertical Band Saw Machine

VH0615-30 High-Speed Vertical Band Saw Machine For Material Sawing







Parameters Table

Project name VH0615-30 High Speed Vertical Band Saw
Maximum sawing capacity 600*1500mm   high(H)* width(W)
Motor 37kw
Saw Belt Speed 200/2000m/min stepless adjustable
Saw Band Size

11200*41*1—3T

Saw belt tensioning method Independent hydraulic tensioning/relaxation
Feed Way Hydraulic drive, speed infinitely adjustable
Automatic feeding Automatic length setting, single feeding 500mm
Chip removal method 15HP pulsed filter core collector



Features

  1. The structural parts including saw bow and base are all integrally processed by the processing center so as to ensure long—term and stable operation of the machine.
  2. Hydraulic tensioning saw belt with break protection.
  3. Tungsten steel clamping structure to ensure the normal operation of the saw belt.
  4. Equipped with small material clamming device for positioning and clamping of partial profiles and small plates.
  5. Fully automatic feeding ensures sawing accuracy and improves clamping efficiency.
  6. Adopt quasi-dry micro—lubrication cooling system to ensure the normal operation of sawing.



Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.



FAQ

Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.



Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.

Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.



If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
