Product Details:
Payment & Shipping Terms:
|
| Total Power (kW): | 36 | Total Weight (T): | 28 |
|---|---|---|---|
| Saw Height (mm): | 100 | Saw Strip Specification (mm): | Φ460 |
| Saw Length (mm): | Maximum 12000 | Brand: | Heineda |
| Highlight: | Automatic Sawing Machine 36kW,Automatic Sawing Machine 12000mm |
||

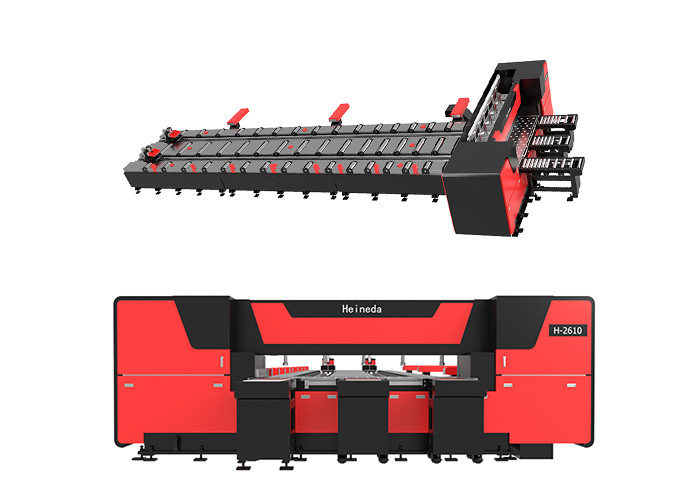

CNC Panel Saw Automatic CNC Sawing And Milling Machine Models Are Complete
Introduction to the use of CNC panel saw spindle
One-time processing, smooth section, high processing accuracy and high speed.
Before using the water-cooled electric spindle, it is necessary to ensure the normal operation of the cooling circulation system. It is forbidden to use it under the cooling conditions. The amount of cooling water is calculated at 1 liter/kilowatt minute. The mouth connection must be firm and not leaking. During the storage and transportation of the electric spindle, the high-speed grease state inside the bearing will change, and the customer should run it in at a low speed before using it. The running-in is carried out from the lowest speed of the electric spindle. After 30 minutes, the number of steps is 3000 revolutions, and each gear is run-in for 20 minutes. If it is not run-in and directly started at high speed, abnormal noise, noise, heat and other phenomena will occur, which will affect the service life of the bearing. number.
Technical specifications and parameters
| Model | CNC Precision Plate Saw Milling Machine |
| Brand | Heineda |
| Code | 0012 |
| Sawing width (mm) | 2600 |
| Saw length (mm) | Maximum 12000 |
| Saw height (mm) | 100 |
| Saw strip specification (mm) | Φ460 |
| Total power (kW) | 36 |
| Total weight (T) | 28 |
Features
| 1. Hydraulic hand-scratch automatic fixed mechanism, maximum itinerary ≥12m |
| 2. Fully automatic fixed and semi-automatic fixed-scale double mode convertible operation |
| 3. Automatic feeding uses servo ruler to position, precise, fast, and reliable. |
| 4. Mechanical framework is heavy-duty structural design to ensure precision stabilization of machines |
| 5. The head operation guide is used to cast a hard rail with a grinding hardening surface, and is completed with the overall casting of the base. |
| 6. Machine head feed Using servo motor + ball rod form |
| 7. Have an automatic chopple |
| 8. Use Heineda to develop patented PLC control and operating system |
Product display
Our factory
Why choose us?
We are professional machinery manufacturer,we will provide good quality machines.We provide technical support and operation training.
We have a complete after-sales service system in the process of using machines.
FAQ
Q: Are you manufacturer ?
A:Yes, we have our own factory and we promise direct sales at a competitive price. Welcome to visit our factory at any time.
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM.
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well.
If you haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
